Execution

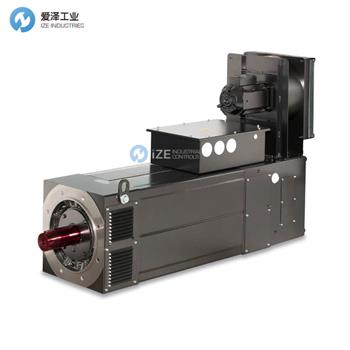

High power induction motor

Shaft height

80, 100, 132, 160, 180, 225, 280, 355mm

Power

0,55…1.115kW

Torque

7…6.700Nm

Weight

20…3100kg

Nr. of poles

4 , 6 1)

Base speed

500, 580, 750, 1000, 1250, 1500, 1800, 2200, 2600rpm

Supply voltage

330 - 400…460Vac - 690Vac on request only for size 280/355

Connection

Star, delta, delta/star, 2)

Electrical connection

Nr.3 or 6 terminals, (delta/star connection available only for
some sizes) into aluminium / steel terminal box.

Insulation class

F, temperature rise cl.F

Thermal protectors

PTO (klixon) as standard, PTC*, KTY84-130*, PT100* on request

Mounting construction

B3, B5, B35, + other vertical and horizontal mountings

Protection degree

HQL: IP 54, IP 55* - HQLa: IP 23S – HQLaW IP 55

Type of cooling

HQL size 80…160: IC 416 axial fan 1-ph 230V 50/60Hz
HQL size 180…355: IC 416 radial fan 3-ph 400/440V 50/60Hz
HQLa: IC 06 radial fan 3-ph 400/440V 50/60Hz with filter

Vibration degree

R, S*

Balancing method

Half key, full* key or without* key on request

Ambient temperature

-20…+40°C

Color

RAL 7037 (grey)

Stator material

Magnetic steel

Covers material

Frame 80…160 aluminium, frame 180…355 cast iron

Flange material

Frame 80…160 aluminium, frame 180…355 cast iron

Shaft

Steel C45 – 39NiCrMo on request

Terminal box position

Standard position top mounted, side* mounted on request

Options available

Encoder, PTC, KTY84-130, PT100, radial fan, parking brake,
insulated bearings, high speed bearings, space heaters, …..
UL omologation available for frames 80…160

Availability

1500rpm B35 normally ready in stock

Delivery time

From ready in stock up to 12 weeks size and options depending
