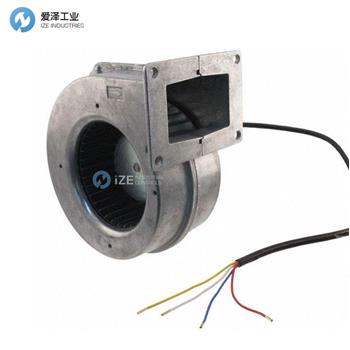

EBMPAPST風機G1G170-AB53-01規格描述
Type | G1G170-AB53-01 | |
Motor | M1G074-CF | |
Phase | 1~ | |
Nominal voltage | VAC | 230 |
Frequency | Hz | 50/60 |
Type of data definition | rfa | |
Power input | W | 360 |
Current draw | A | 1.6 |
Min. ambient temperature | °C | -25 |
Max. ambient temperature | °C | 55 |
Max. ambient temperature | °C | 55 |
Min. temp. of flow medium | °C | -25 |
Max. temp. of flow medium | °C | 80 |
Mass | 4.7 kg |
Size | 170 mm |
Surface of rotor | Coated in black |
Material of protective cover | Polyflam RPP 374-ND CS1 (UL 97-V0) |
Material of impeller | Aluminium sheet |
Housing material | Die-cast aluminium |
Direction of rotation | Clockwise, seen on rotor |
Type of protection | IP 20 |
Insulation class | "B" |
Max. permissible ambient motor temp. (transp./ storage) | ﹢80℃ |
Min. permissible ambient motor temp. (transp./storage) | -40°C |
Mounting position | Any |
Cooling bore/aperture | Rotor-side |
Operation mode | S1 |
Motor bearing | Ball bearing |
Technical features | PFC,active |
EMC interference immunity | Acc. to EN 61000-6-2 (industrial environment) |
EMC interference emission | Acc. to EN 61000-6-4 (industrial environment) |
EMC harmonics | Acc. to EN 61000-3-2/3 |
Leakage current | <= 3.5 mA |
Electrical leads | With plug |
Motor protection | Thermal overload protector (TOP) wired internally |
Approval | CSA C22.2 Nr.113; UL 507 |
愛澤工業(IZE_INDUSTRIES)特價經銷、常用EBMPAPST型號：
EBMPAPST G1G097-AA05-01
EBMPAPST G1G085-AB05-01
EBMPAPST G1G133-DE19-02
EBMPAPST G1G108-AB17-02
EBMPAPST G1G120-AB67-02
EBMPAPST G1G140-AV17-02
EBMPAPST G1G160-BH29-52
EBMPAPST G1G160-BH29-52
EBMPAPST G1G170-AB53-01
EBMPAPST fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機G1G系列的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
EBMPAPST風機G1G170-AB53-01技術數據
