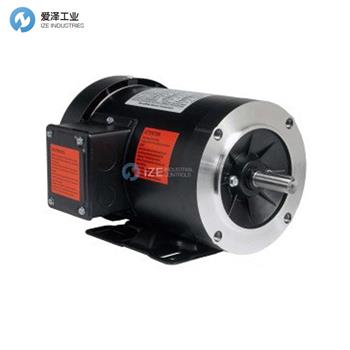

WORLDWIDE ELECTRIC電機NAT12-18-56CB產品參數
Specification | |
HORSEPOWER | 1/2 (1/3) |
RPM / POLES | 1800 / 4 (1500 / 4) |
VOLTAGE / PHASE | 230/460 V / 3 (190/380 V / 3) |
FRAME | 56C |
ENCLOSURE / DEGREE OF PROTECTION | TEFC / IP43 |
FREQUENCY | 60 HZ (50 HZ) |
FULL LOAD SPEED | 1725 RPM (1425 RPM) |
SERVICE FACTOR | 1.15 (1.0) |
INSULATION CLASS | F |
FULL LOAD AMPS; 230 / 460 (190 / 380) | 1.9 / 0.95 A (1.7 / 0.85 A) |
EFFICIENCY / POWER FACTOR | LOAD EFF. P.F. |
DUTY CYCLE | Continuous |
MAX. AMBIENT TEMPERATURE | 40° C |
MAX. ELEVATION | 3300 Ft. Above Sea Level |
TEMPERATURE RISE (At Full Load) | 80° C |
DE BEARING | 6203 |
ODE BEARING | 6203 |
REGREASING INT. - DE BEARING | --- |
REGREASING INT. - ODE BEARING | --- |
GREASE TYPE | Mobil Polyrex EM |
MOUNTING | F1 |
ROTATION | Bi-Directional |
CONNECTION DIAGRAM | 230/460 V (190/380 V) - 9 Lead |
APPROXIMATE WEIGHT | 19 lbs. |
INVERTER RATING | 2:1 CT / 5:1 VT PWM Type |
OPTIONS / ACCESSORIES | Base NBASE56-2 |
WORLDWIDE ELECTRIC電機NAT(E)系列產品介紹
WorldWide Electric提供多樣化，可靠的通用三相TEFC（全封閉風扇冷卻）電動機。該電機適用于各種工業應用，并具有可移動的底座，C面，用于支撐皮帶驅動應用的止動軸承以及用于垂直應用的超大型軸承，我們將這款電機設計為具有獨特的通用性，有助于減少現有庫存需求并提高了許多不同用途和安裝之間的兼容性。也可提供單相通用電動機。
產品特色
剛性基礎：1/2-2 HP; 1800轉/分
1 / 3-3馬力
3600和1800 RPM
208-230 / 460伏
TEFC外殼
1.15服務系數
F級絕緣
C面-可拆卸底座
軸拋油環，以保持驅動端軸承中的水分和污染物
變頻器負載
適用于以1.0的服務系數運行50 Hz
WorldWide Electric offers diverse, dependable General Purpose Three-Phase TEFC (Totally Enclosed Fan Cooled) Motors. Suitable for a diverse range of industrial applications and featuring a removable base, C-face, captured bearings to support belt drive applications and oversized bearings for vertical applications, we’ve designed this motor to be uniquely versatile to help reduce on-hand inventory requirements and increase compatibility across many different uses and installations. Single Phase general purpose motors are also available.
Product Features
Rigid Base: 1/2 - 2 HP; 1800 RPM
1/3-3 HP
3600 and 1800 RPM
208-230/460 volt
TEFC enclosure
1.15 service factor
Class F insulation
C-face - removable base
Shaft slinger to keep moisture and contaminants from the drive-end bearing
Inverter duty
Suitable for 50 hz operation with 1.0 service factor
選型參考
WORLDWIDE ELECTRIC電機NAT12-18-56CB其他常見型號
WORLDWIDE ELECTRIC NAT13-36-56CB
WORLDWIDE ELECTRIC NAT12-36-56CB
WORLDWIDE ELECTRIC NAT34-36-56CB
WORLDWIDE ELECTRIC NAT13-18-56CB
WORLDWIDE ELECTRIC NAT12-18-56CB
WORLDWIDE ELECTRIC NAT34-18-56CB
WORLDWIDE ELECTRIC NAT12-18-56
WORLDWIDE ELECTRIC NATE1-36-56CB
WORLDWIDE ELECTRIC NATE1-18-56CB
WORLDWIDE ELECTRIC NATE1-18-56CRD
WORLDWIDE ELECTRIC NATE1-36-56CRD
WORLDWIDE ELECTRIC NATE1.5-36-56CB
