TB WOODS聯軸器Sure-Flex系列技術參數
Specifications | |
Product Family: | Sure-Flex Sleeve |
Coupling Size: | 5 |
Material Type: | EPDM |
Max RPM: | 7600 |
Outside Diameter (D): | 2 15/16 in |
Horsepower Rating [at 50 rpm]: | 0.25 |
Horsepower Rating [at 300 rpm]: | 1.5 |
Horsepower Rating [at 690 rpm]: | 3.4 |
Horsepower Rating [at 870 rpm]: | 4.3 |
Horsepower Rating [at 1150 rpm]: | 5.7 |
Horsepower Rating [at 1200 rpm]: | 5.9 |
Horsepower Rating [at 1750 rpm]: | 8.7 |
Horsepower Rating [at 1800 rpm]: | 8.9 |
Horsepower Rating [at 3450 rpm]: | 17 |
Horsepower Rating [at 3600 rpm]: | 18 |
Insert Design: One-Piece Solid | |
Temperature Rating: | -30°F to 275°F |
Parallel Misalignment [Max]: | 0.015 (in) |
Angular Gap Misalignment [Max]: | 0.056 (in) |
Angular Misalignment [Max]: | 1° |
Component WR2: | 0.0016 lbs ft2 |
Torque Rate: | 312 (in-lbs) |
Stiffness: | 916 in-lbs/rad |
Torque Rate: | 35 Nm |
Torque: | 312 in-lb |
Sleeve Width (W): | 1.5625 |
Component Weight: | 0.2 lbs/0.09 kg |

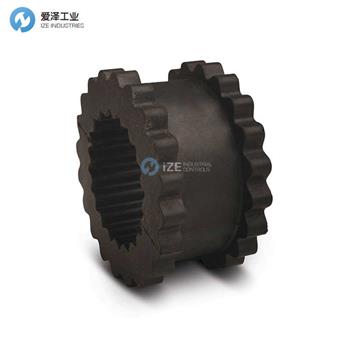

TB WOODS聯軸器Sure-Flex Sleeve系列介紹
新型Sure-Flex Plus EPDM和氯丁橡膠聯軸器在聯軸器性能和價值方面都是前列的。它們的4向彎曲動作可吸收幾乎絕大多數類型的沖擊、不對中和末端浮動。使用Sure-Flex聯軸器，無需潤滑和維護。
New Sure-Flex? Plus EPDM and Neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment, and end float. With Sure-Flex couplings, the need for lubrication and maintenance is eliminated.
TB WOODS聯軸器其他常用型號：
TB WOODS 3JE EPDM
TB WOODS 4JE EPDM
TB WOODS 5JE EPDM
TB WOODS 6JE EPDM
TB WOODS 7JE EPDM
TB WOODS 8JE EPDM
TB WOODS 9JE EPDM .
TB WOODS 10JE EPDM
TB WOODS 5JE-SLEEVE- EPDM
TB WOODS Sleeve NEW + ORIGINAL+ ONE YEAR WARRANTY
