WORLDWIDE ELECTRIC電機PEWWE2-18-145TC產品參數
Specification | |
HORSEPOWER | 2 |
RPM / POLES | 1800 / 4 |
VOLTAGE / PHASE | 230 / 460 V / 3 |
FRAME | 145TC |
ENCLOSURE / DEGREE OF PROTECTION | TEFC / IP55 |
FREQUENCY | 60 HZ Suitable For 50 HZ Operation With 1.0 SF |
FULL LOAD SPEED | 1755 RPM |
SERVICE FACTOR | 1.25 |
INSULATION CLASS | F |
FULL LOAD AMPS; 230 / 460 | 5.93 / 2.97 A (Usable On 208V At 6.56 A) |
LOCKED ROTOR AMPS (STARTING); 230 / 460 | 50 / 25 A |
NO LOAD CURRENT | 3.9 / 1.95 A |
NEMA CODE LETTER | L |
EFFICIENCY / POWER FACTOR | LOAD EFF. P.F. |
DUTY CYCLE | S1 / Continuous |
TORQUE | FULL LOAD LRT BDT |
SLIP | 0.025 |
NEMA DESIGN | B |
MOMENT OF INERTIA | 0.105 lb.ft.2 |
MAX. TIME LOCKED ROTOR (Hot) | 12 Seconds |
SOUND PRESSURE LEVEL | 62 dB (A) |
MAX. AMBIENT TEMPERATURE | 40° C |
MAX. ELEVATION | 3300 Ft. |
TEMPERATURE RISE (At Full Load) | 80° C |
DE BEARING | 6205ZZ C3 |
ODE BEARING | 6205ZZ C3 |
REGREASING INT. - DE BEARING | --- |
REGREASING INT. - ODE BEARING | --- |
GREASE TYPE | SKF LGHP 2 |
MOUNTING | F1 (F2 Suitable) |
ROTATION | Bi-Directional |
SHAFT MATERIAL | 1045 Carbon Steel |
INVERTER RATING | 10:1 CT / 20:1 VT PWM Type |
CONNECTION DIAGRAM | 230 / 460 V - 9 Lead Y |
AREA CLASSIFICATION | Class I, Division 2, Groups A, B, C, D |
APPROXIMATE WEIGHT | 58.5 lbs |

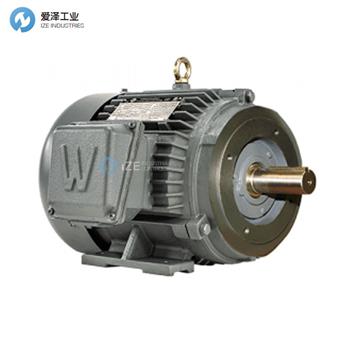

WORLDWIDE ELECTRIC電機NAT(E)系列產品介紹
WorldWide Electric的高效率高效重型電機是許多工業應用的理想解決方案。 這些可靠的高性能電機設備齊全，可以為泵，風扇，壓縮機和鼓風機，破碎機，錘磨機和骨料加工設備等提供動力。 憑借TEFC外殼，卓越的效率性能，超大型軸承和逆變器級電磁線。
WorldWide Electric’s Premium Efficiency Severe Duty Motors are an ideal solution for many industrial applications. These reliable, high performance motors are well-equipped to power anything from pumps, fans, compressors, and blowers to crushing, hammer mill, and aggregate processing equipment. Featuring a TEFC enclosure, premium efficiency performance, oversized bearings, and inverter-grade magnet wire.

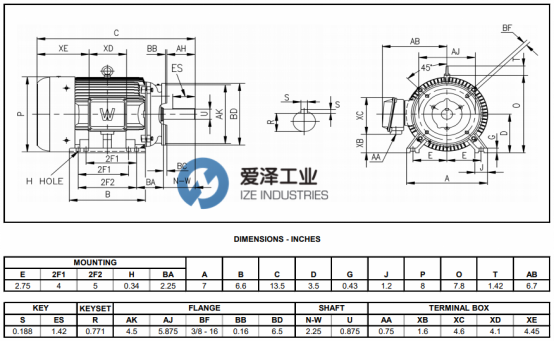

外觀尺寸
