DAYTON電機6ML69產品參數
Technical Specs | |
Item | DC Gearmotor |
Gearmotor Type | DC Gearmotor |
Gearmotor Voltage | 90V DC |
Max. Torque | 305 in-lb |
Gearmotor Shaft Type | Single |
Gearmotor Shaft Orientation | Parallel |
Rear Shaft Encoder/Pulse Generator Mounting | No |
Nameplate RPM | 27 RPM |
Gearmotor Enclosure | Totally Enclosed Nonventilated |
Gearmotor Mounting Position | All Angle |
Length Less Shaft | 11 5/16 in |
Reversible Shaft Output | No |
Overhung Load | 374 lb |
Input HP | 1/4 |
Gear Ratio | 91:1 |
Full Load Amps | 1.5 A |
hermal Protection | None |
Max. Ambient Temp. | 40 Degrees C |
Gearmotor Rotation | CW/CCW |
Motor Type | Permanent Magnet DC |
Overall Length | 12 15/16 in |
Shaft Dia. (Dimension U) | 3/4" |
Shaft Length (Dimension V) | 1-5/8" |
Bearings | Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case |
Lubrication | Permanent Heavy Fluid Gear Oil |
Brushes | Externally Replaceable |
Gear Material | Hardened Steel |
Gear Type | Helical and Spur |
Gear Case | Die Cast Aluminum |
Seals | Heavy Duty Industrial |
Housing Material | Die Cast Aluminum |
Standards | CSA Certified, UL Recognized |
DAYTON電機6ML69產品介紹

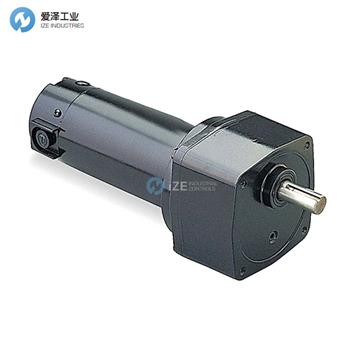

DC Gearmotor: 90V DC, 27 RPM Nameplate RPM, 305 in-lb Max. Torque, CW/CCW, All Angle
直流減速電機：90V DC，27 RPM 銘牌 RPM，305 in-lb Max。 扭矩，CW/CCW，所有角度
