MAICO風機EZQ25/2B技術參數
Technical data | |
Model | Square wall plate |
Air flow volume | 2. 100 m"/h |
Air volumenom . | 1.470 m'/h (in opt. efciency) |
Pressure pfs, nom | 135 Pa (in opt. eficiency) |
Rotating speed nnom | 2.770 1/min (in opt eficiency) |
Rotating speed | 2.833 1/min |
Impeller tpe | axial |
Speed cntollable | √ |
Reversing capacity | √ |
Type of vltage | Altermating current |
Rated vlliage | 230 V |
Frequency | 50Hz |
Nominal output | 185 W (in opt. eficiency) |
lnom | 0,75 A (in opt. eficiency) |
Imax | 1,1A |
Degree of protection | IP 55 |
Insulation class | F |
Installation site | Wall /Ceiling |
Type of nstallation | Surface-mounted |
Installation position | horizonta/vertical |
Material | Sheet steel, galvanised |
Colour | Silver |
Weight | 4,255 kg |
Weight induding packaging | 8,202 kg |
Nominal size | 250 mm |
Width | 400 mm |
Height | 400 mm |
Depth | 259 mm |
Width with packaging | 420 mm |
Height with packaging | 420 mm |
Depth with packaging | 300 mm |
Airstream temperature at nominal current | -20 °C up to 60 °C |
Airstream temperature at IMax | -20 °C up to 60 °C |
MAICO風機EZQ25/2B產品介紹

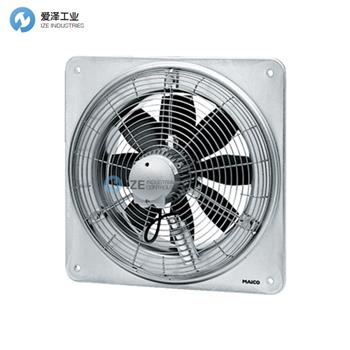

Axial wall fan
EZQ 25/2 B
Article number: 0083.0104
Manufacturer: MAICO
Axial wall fan with square wall plate, DN 250, single-phase AC
Application examples: Production facility, Commercial premises, Garage, Building container, Storage facility
軸流壁扇
EZQ 25/2 B
商品編號：0083.0104
制造商：MAICO
帶方形壁板的軸流壁扇，DN 250，單相交流
應用示例：生產設施、商業場所、車庫、建筑容器、存儲設施
MAICO風機其他常用型號：
MAICO EZQ 25/4 E
MAICO EZS 25/4 E
MAICO EZQ 25/4 D
MAICO EZS 25/4 D
MAICO EZQ 25/2 B
MAICO EZS 25/2 B
