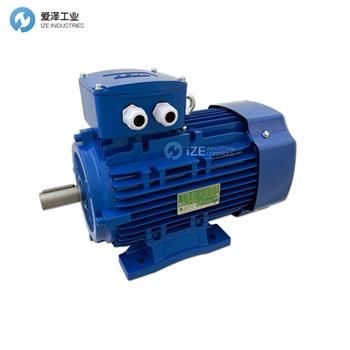

BEVI電機4An 132M2-6技術參數
Motor data 50 Hz | |
Power, 50 Hz (kW) | 5,5 |
Voltage, 50 Hz (V) | 400/690 |
Speed, 50 Hz (RPM) | 970 |
Current, 50 Hz, 400 V (A) | 12,0 |
Power factor, 50 Hz (cos φ) | 0,75 |
Efficiency 50 Hz, 100 % | 88,1 |
Efficiency 50 Hz, 75 % | 88,5 |
Efficiency 50 Hz, 50 % | 87,5 |
Motor data 60 Hz | |
Power, 60 Hz (kW) | 6,6 |
Voltage, 60 Hz (V) | 460D |
Speed, 60 Hz (RPM) | 1164 |
Current, 60 Hz, 460 V (A) | 12,5 |
More technical information | |
Frame size | 132 |
Poles | 6 |
Shaft diameter (mm) | 38 |
Duty | S1 |
Insulation class | F |
Degree of protection (IP) | 55 |
Efficiency class | IE3 |
Thernal protection | PTC 150°C |
Ratio of starting current to rated current (Ia/In) | 7,0 |
Ratio of starting torque to rated torque (Ma/Mn) | 2,0 |
Ratio of sweeping torque to rated torque (Mmax/Mn) | 2,1 |
Moment of iniertia, (J), (kgm2) | 0,05374 |
Product series | 4A3 |
Cooling (IC) | 411 |
Temperature rise class | F |
Sound pressure | 59 |
Weight | |
Net weight (kg) | 63 |
Material and colour | |
Colour | Blue, RAL 5010 |
Housing | Aluminium |
Bearings DE and NDE | |
Bearing DE | 6308 2Z C3 |
Bearing NDE | 6308 2Z C3 |
