FISHER定位器3720技術參數
Specifications | |
Area Classification | Explosion Proof, Intrinsically Safe, Non-incendive, Dust |
Certifications | CSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, RCM |
Communication Protocol | 4-20mA Analog |
Data Interface | Wired |
Diagnostics | No |
Input Signal | Electric |
Max Outlet Pressure | 150 psi |
Mounting Type | Actuator Mounted |
Operating Temperature | Standard Temperature, High Temperature |
Position Control | Modulating |
Process Control | Flow, Pressure, Temperature, Level |
Safety Certification | NIL |
Supply Media | Air |
Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
FISHER定位器3720產品介紹

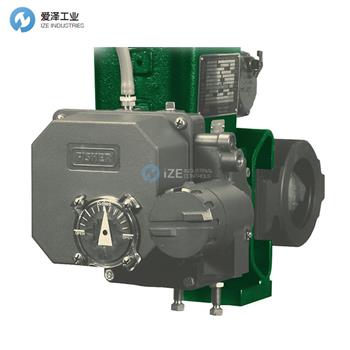

Fisher 3720 electro-pneumatic positioners are designed for use with either diaphragm or piston rotary actuators. These positioners provide a valve ball or disk position for a specific input signal. The 3720 is created by the addition of a Fisher 3722 electro-pneumatic converter to the 3710 positioner. The positioner provides a valve position in response to a DC current input signal and can easily be configured as single- or double-acting for rotary actuators.
Fisher 3720 電動氣動定位器設計用于與隔膜或活塞旋轉執行器配合使用。 這些定位器為特定輸入信號提供閥球或閥盤位置。 3720 是通過在 3710 定位器上添加 Fisher 3722 電動氣動轉換器而創建的。 該定位器響應直流電流輸入信號提供閥門位置，并且可以輕松配置為旋轉執行器的單作用或雙作用。
FISHER定位器其他常見型號：
FISHER 3720
FISHER 3710
FISHER Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FISHER定位器3720的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FISHER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
FISHER定位器3720產品參數
