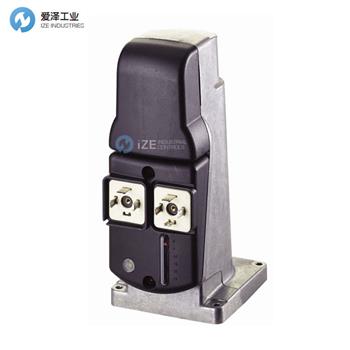

SIEMENS執行器SKP15系列技術參數
General unit data | |
Mains voltage： | SKPx5.xxxE2 - AC 230 V –15%/+10% |
Mains frequency | 50 / 60 Hz ±6% |
Power consumption | Protection 1 A slow, Max. 10 VA |
Closing time | <1 s (at shutdown) |
Degree of protection | IP54 only ensured when central screw at the connector is tightened |
Group 1 | In accordance with DIN EN 88-1 |
Pollution degree | 2 |
Rated surge voltage | Overvoltage category III in accordance with DIN EN 60730-1 |
Mode of operation | Automatic controller and control unit: Type 2C |
Design of the controller and control unit | Integrated controller and control unit |
On-time | 1 |
Weight | SKP15 Approx. 1.1 kg |
Permissible test pressure ?PG? | 100 kPa |
Permissible under pressure ?PG? | 20 kPa |
Gas family | I...III |
SIEMENS執行器SKPx5系列介紹
SKPx5 執行器和閥門的組合執行以下功能：
- 安全截止閥（SKP15）
- 帶燃?xì)鈮毫φ{(diào)節器的安全截止閥（SKP25、SKP55、SKP75）
電液操作 SKPx5 執行器與閥門一起設計用于 I…III 類氣體和空氣，主要用于燃?xì)馊紵O(shè)備。 SKPx5 執行器緩慢打開并快速關閉。 SKPx5 執行器可配備終端開關（用于指示完全關閉位置）。
The combination of an SKPx5 actuator and a valve performs the following functions:
- Safety shutoff valve (SKP15)
- Safety shutoff valve with gas pressure governor (SKP25, SKP55, SKP75)
Together with a valve, the electrohydraulically operated SKPx5 actuators are designed for use with gas types I…III and air, and are primarily used in gas-fired combustion plants. The SKPx5 actuators open slowly and close quickly. The SKPx5 actuator can be supplied with end switches (for indicating the fully closed position).
SIEMENS執行器SKP15系列其他常用型號：
SIEMENS SKP15.000E1
SIEMENS SKP15.000E2
SIEMENS SKP15.001E1
SIEMENS SKP15.001E2
