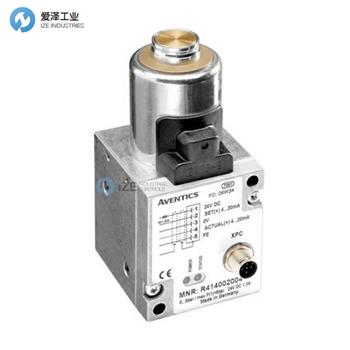

AVENTICS壓力調節器R414002004技術參數
Specifications | |
Type | Poppet valve |
Certificates | CE declaration of conformity |
Working pressure min. | 0 bar |
Working pressure max | 11 bar |
Min. ambient temperature | 0 °C |
Max. ambient temperature | 70 °C |
Compressed air connection input | G 1/4 |
Compressed air connection output | G 1/4 |
Compressed air connection, exhaust | G 1/4 |
Medium | Compressed air |
Nominal flow Qn | 1000 l/min |
Control | Analog |
DC operating voltage | 24 V |
Hysteresis | < 0,06 bar |
Mounting orientation | α = 0-90° β = 0-90° |
Permissible ripple | 0.05 |
Protection class | IP65 |
Electrical connection | via signal connection |
Signal connection | input and output |
Signal connection | Plug |
Signal connection | M12 |
Signal connection | 5-pin |
Actual output value | 4 ... 20 mA |
Nominal input value | 4 ... 20 mA |
Regulation range min. | 0 bar |
AVENTICS壓力調節器R414002004產品介紹
定制的按需壓力控制
堅固的提升閥技術保證了較長的使用壽命
高流量，適用于各種任務
高動態直動技術
無耐磨先導閥或隔膜
多種電氣連接選項
Tailored, on-demand pressure control
Robust poppet valve technology guarantees a long service life
High flow for a wide range of tasks
Highly dynamic direct acting technology
No wearable pilot valves or diaphragm
Various electrical connection options
AVENTICS壓力調節器ED05系列其他常用型號：
AVENTICS R414002004
AVENTICS R414002005
AVENTICS R414002006
AVENTICS R414002007
AVENTICS R414002008
AVENTICS R414002009
AVENTICS R414002010
AVENTICS R414002294
AVENTICS R414002003
AVENTICS PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS壓力調節器R414002004的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
