EATON分流器2CFD200系列技術參數
Specifications | |
Figures based on an oil temp at 40?C and of 32 cSt (150 SUS) | |
Rated Flow | Up to 220 liters/min (58 USgpm) |
Ratio division | 50/50 standard |
Maximum pressure | 280 bar (4000 psi) |
Cartridge material | Working parts hardened & ground steel. |
Body material | Aluminum (up to 210 bar) |
Mounting position | Unrestricted |
Cavity Number | CVB-42-04-0 |
Torque cartridge into cavity | 150 Nm (110 ft lbs) |
Weight | 2CFD200: 0,78 kg (1.72 lbs) |
Seal kit number | SK597 (Nitrile), SK597V (Viton?) |
Recommended Filtration Level | BS5540/4 Class 18/13 |
Temperature range | –30° to +90° C (–22° to 194° F) |
Nominal range | 5 to 500 cSt |

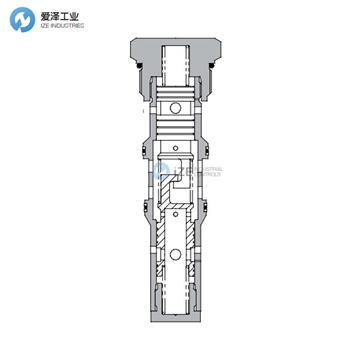

EATON分流器2CFD200系列介紹
該系列分流器/合流閥可將輸入流量分成兩個相等的部分，并在相反方向上重新組合流量。 壓力補償可確保無論是分流還是合流，在較大的壓力變化范圍內都能保持相等的流量。 這些閥門的典型用途是分配泵流量以操作兩個執行器（可能處于不同的負載條件和不同的壓力下），并重新組合回流以同步執行器的運動。 壓力和入口流量最大變化時，流量變化在±10%以內，正常情況下會明顯更小。
This range of flow divider/ combiner valves gives division of input flow into two equal parts and re-combination of flow in the reverse direction. Pressure compensation ensures that whether dividing or combining, equal flow is maintained over a wide range of pressure variation. A typical use of these valves is to divide a pump flow to operate two actuators (which may be under different load conditions and at different pressures) and to re-combine the return flows to synchronize actuator movement. Flow variation is within ±10% with the maximum variation of pressure and inlet flow and under normal conditions will be significantly less.

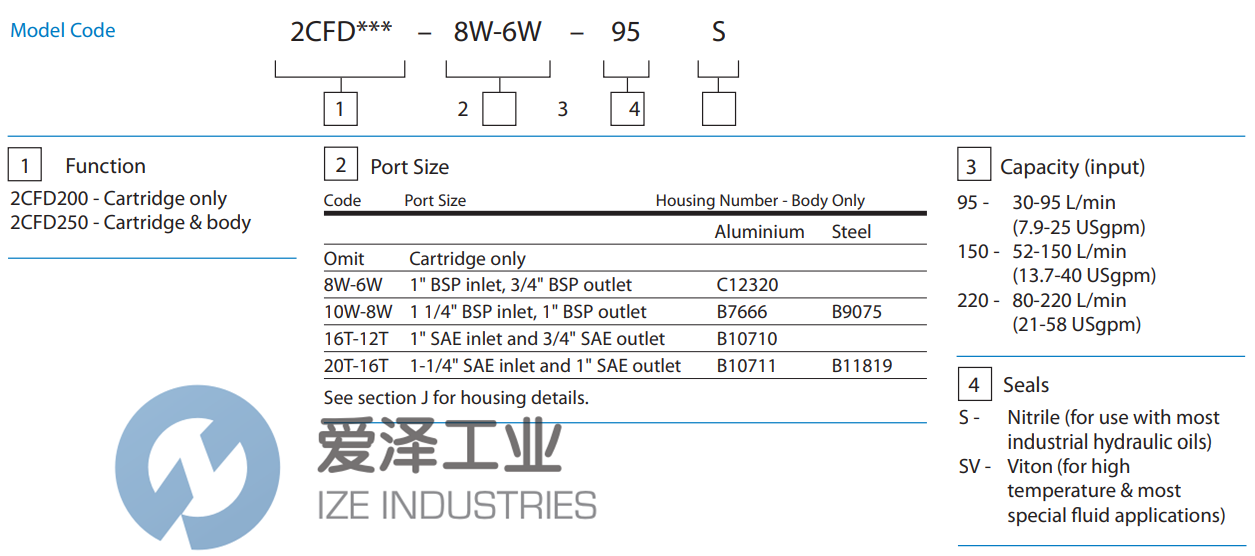

EATON分流器2CFD200系列選型
EATON分流器2CFD200系列其他常用型號：
EATON 2CFD250-8W-6W-220S
EATON 2CFD250-16T-12T
EATON 2CFD250-8W-6W
EATON 2CFD250-8W-6W-95S
EATON 2CFD250-8W-6W-150S
EATON FLOW DIVIDER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EATON分流器2CFD250-8W-6W-220S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
EATON分流器2CFD200系列2CFD250-8W-6W-220S技術參數及選型
