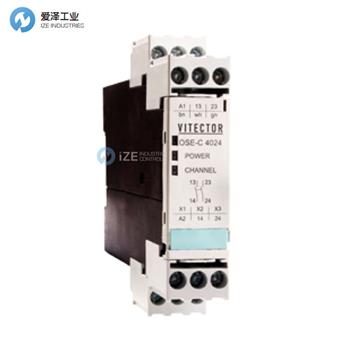

VITECTOR控制單元OSE-C 4024技術參數
General Technical Data | |
Housing Type | DIN Rail Mounting |
Input Type of Sensing Edge | 3-Wire |
Outputs | Relay NCC |
Additional Outputs | Signalling Output |
Supply Voltage | 24 V DC |
Operation Temperature | +5 °C to +55 °C (41 °F to 131 °F) |
Weight | 0.2 kg |
Housing Material | Polyethylene |
Protection Class | Housing IP40, Terminal Block IP20 |
Housing Dimensions | 22.5x100x120 mm (0.89x3.94x4.72") |
Power Consumption | 4 VA |
Cyclic Duration Factor | 1 |
Number of Optical Sensing Edge Inputs | 1 |
Safety Properties | |
Safety Properties | Safety Cat. 4 PL e (EN 13849-1) |
MTTFd | 100 years |
Diagnostic Coverage DC | 0.99 |
Sensing Edge Output | |
Output Type | NCC Relay |
Contact Material | Hard Silver, AgNi |
Max. Switching Voltage | 250 V AC/DC |
Max. Switching Current | 4 A |
Max. Switching Capacity | 1000 VA |
Fusing | 4 A slow acting |
Signalling Output | |
Output Type | Semiconductor Output (PNP open collector) |
Current / Voltage | U max. = 36 V, I max. = 50 mA |
Unit of Measure | Piece |
Product Life Cycle | Established |

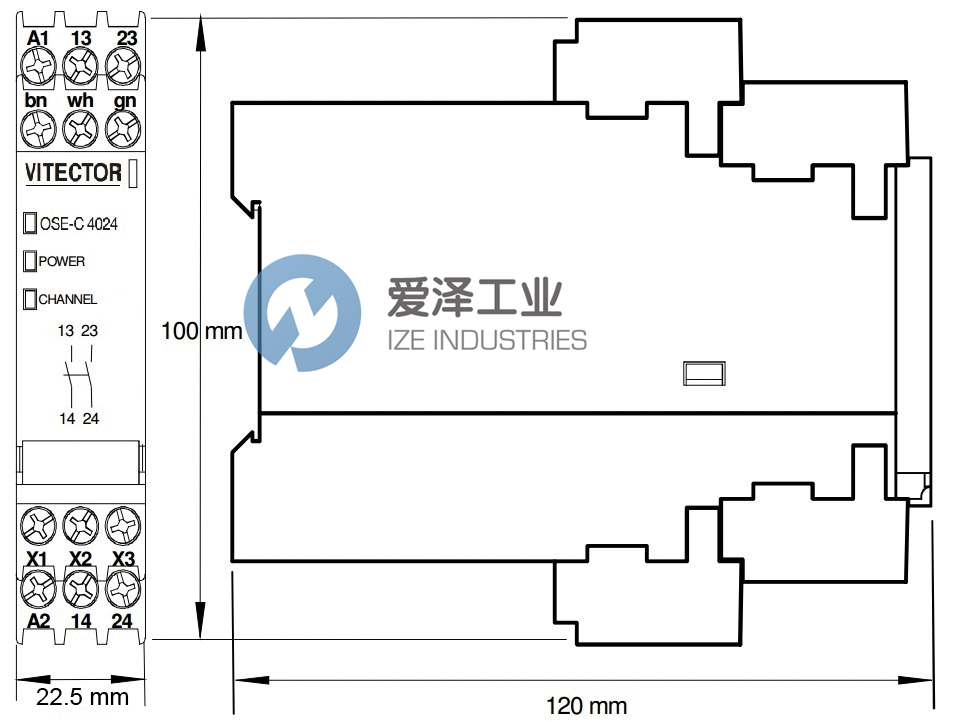

VITECTOR控制單元OSE-C 4024技術尺寸
