AVENTICS調節閥0821300350技術參數
Specifications | |

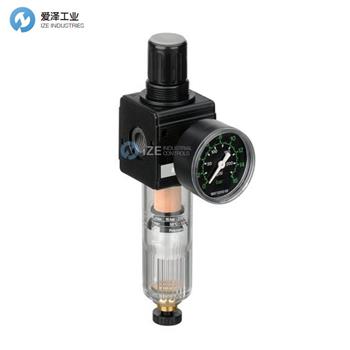

Parts | Filter pressure regulator |
Reservoir | reservoir, polycarbonate, without protective guard |
Port | G 1/2 |
Nominal flow Qn | 6900 l/min |
Filter porosity | 5 μm |
Condensate drain | semi-automatic, open without pressure |
Pressure gauge | with pressure gauge |
Working pressure min. | 1.5 bar |
Working pressure max | 16 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 60 °C |
Regulation range min. | 0.5 bar |
Regulation range max. | 10 bar |
Lock type | not lockable |
Type | 1-part |
Type | Can be assembled into blocks |
Pressure supply | single |
Mounting orientation | vertical |
Regulator type | Diaphragm-type pressure regulator |
Regulator function | with relieving air exhaust |
Filter element | exchangeable |
Filter reservoir volume | 50 cm3 |
Max. achievable compressed air class acc. to ISO 8573-1:2010 | 6 : 7 : - |
Medium | Compressed air, Neutral gases |
Weight | 1.19 kg |
AVENTICS調節閥AS3-FRE系列其他常用型號：
AVENTICS 0821300350
AVENTICS 0821300234
AVENTICS 0821300236
AVENTICS 0821300237
AVENTICS 0821300238
AVENTICS 0821300240
AVENTICS 0821300281
AVENTICS 0821300351
AVENTICS 0821300352
AVENTICS 0821300353
AVENTICS 0821300354
AVENTICS FILTER PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS調節閥0821300350的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
AVENTICS調節閥0821300350技術參數及介紹
