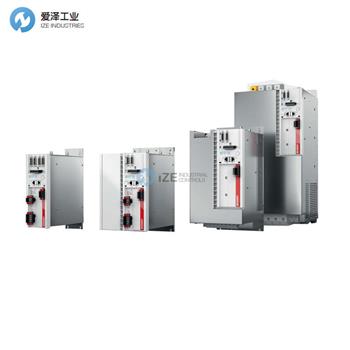

BECKHOFF伺服驅動器AX5000系列介紹

AX5000 雙通道伺服驅動器提供更佳的功能、靈活性和成本效益。運行所需的組件，例如電源單元、EMC 濾波器和直流母線電容器，均已集成?？刂苹芈凡捎眉壜?lián)結構，支持快速、高動態的定位任務。EtherCAT作為一種高性能系統通信，可實現與基于 PC 的控制技術的理想連接。

雙通道版本的 AX5000 驅動器具有從 2 x 1.5 A 到 2 x 6 A 的不同電流強度。這是兩個獨立的通道，其額定電流可適應相應連接的電機。借助靈活的調節選項，當第二通道驅動較小的電機時，也可以將較大的電機連接到雙通道設備。調整時必須考慮設備的允許總電流。

AX-Bridge快速連接系統可以簡單快速地連接多個AX5000設備，形成多軸系統。插入式電源和連接模塊連接電源、直流母線和 24 V DC 控制電壓。不同類型和尺寸的電機（例如同步電機、線性電機、扭矩電機、異步電機和音圈電機）都可以連接到 AX5000，無需額外措施。多反饋接口支持所有通用標準。同步和異步電機的無傳感器運行模型也可以參數化。

The AX5000 two-channel servo drives offer optimal function, flexibility and cost-effectiveness. The components required for operation, such as power supply unit, EMC filter and DC link capacitors, are already integrated. The control loop, which has a cascaded structure, supports fast and highly dynamic positioning tasks. EtherCAT as a high-performance system communication enables ideal interfacing with PC-based control technology.

The AX5000 drives in the two-channel version are available with different current intensities from 2 x 1.5 A to 2 x 6 A. These are two separate channels, whose rated current can be adapted to the respective connected motor. With the help of the flexible adjustment option, a larger motor can also be connected to a two-channel device when the second channel is driving a smaller motor. The allowable sum current of the device must be taken into account when adjusting.

The AX-Bridge quick connection system enables simple and fast connection of several AX5000 devices to form a multi-axis system. The plug-in supply and connection modules connect power supply, DC link and 24 V DC control voltage. Different types and sizes of motor such as synchronous, linear, torque, asynchronous and voice coil motors can be connected to the AX5000 without additional measures. The multi-feedback interface supports all common standards. The model of sensorless operation of synchronous and asynchronous motors can also be parameterized.

BECKHOFF伺服驅動器AX5000系列其他常用型號：

BECKHOFF AX5206-0000-0202

BECKHOFF AX5206-0000-0200

BECKHOFF AX5203-0000-0200

BECKHOFF AX5203-0000-0202

BECKHOFF AX5201-0000-0200

BECKHOFF AX5201-0000-0202

BECKHOFF AX5193-0000-0200

BECKHOFF AX5193-0000-0202

BECKHOFF AX5192-0000-0200

BECKHOFF AX5192-0000-0202

BECKHOFF SERVO DRIVES NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于BECKHOFF伺服驅動器AX5206-0000-0200的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for BECKHOFF products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.

BECKHOFF伺服驅動器AX5206系列AX5206-0000-0200技術參數及介紹
