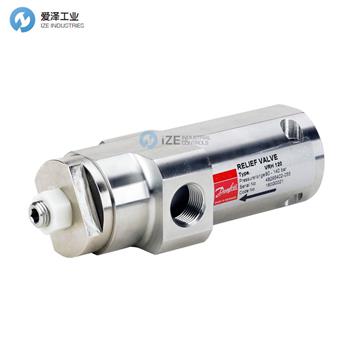

DANFOSS泄壓閥180G0021技術參數
Product details | |
Gross weight | 3.336 Kilogram |
Net weight | 3.183 Kilogram |
Volume | 2.959 Liter |
Type | VRH 120 |
Product group | Valve |
Body material | AISI 304 |
CE evaluated | Out of scope |
China RoHS compliance | Yes |
China RoHS exemption clause | No |
Connection standard | BSP |
Contains batteries | No |
Description | VRH 120 80-140 BAR PRESSURE REL |
EU RoHS compliance | Yes |
EU RoHS exemption clause | No |
Flow [gpm] [Max] | 31.7 gal/min |
Flow [l/min] [Max] | 120 l/min |
In scope of WEEE | No |
Inlet connection size [in] | 3/4 in |
Media temperature [°C] [Max] | 50 °C |
Media temperature [°F] [Max] | 122 °F |
Operating pressure [barg] [Max] | 140 barg |
Operating pressure [barg] [Min] | 80 barg |
Operating pressure [psig] [Max] | 2030 psig |
Operating pressure [psig] [Min] | 1160 psig |
Outlet connection size [in] | 3/4 in |
Product description | Pressure operated valves |
REACH Candidate List substances | No |
Type designation | VRH 120 80-140 bar |
UL evaluated | Out of scope |
DANFOSS泄壓閥180G0021產品介紹
流量 [升/分鐘] [最大值]：120，流量 [加侖/分鐘] [最大值]：31.7，壓力：80 barg - 140 barg，1160 psig - 2030 psig
Flow [l/min] [Max]: 120, Flow [gpm] [Max]: 31.7, 80 barg - 140 barg, 1160 psig - 2030 psig
DANFOSS泄壓閥VRH系列其他常用型號：
DANFOSS 180G0034 VRH 5 30-120 bar
DANFOSS 180G0033 VRH 5 CA 30-120 bar
DANFOSS 180G0021 VRH 30 25-140 bar
DANFOSS 180G0029 VRH 30 10-40 bar
DANFOSS 180G0031 VRH 30 45-210 bar
DANFOSS 180G0032 VRH 30 CA 25-140 bar
DANFOSS 180G0002 VRH 60 25-80 bar
DANFOSS 180G0003 VRH 60 80-140 bar
DANFOSS 180G0020 VRH 120 25-80 bar
DANFOSS 180G0021 VRH 120 80-140 bar
DANFOSS 180G0035 VRH 120 F 80-140 bar
DANFOSS PRESSURE RELIEF VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS泄壓閥180G0021的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
