AVENTICS換向閥5811420100技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 1100 l/min |
Switching principle | 5/3, closed center |
Version | Closed Center |
Compressed air connection output | Base plate ISO 5599-1 |
Min. working pressure | 3 bar |
Max. working pressure | 10 bar |
Operational voltage DC | 24 V |
Voltage tolerance DC | -10%/10% |
Manual override | with detent |
Electrical connection type | Plug |
Electrical connection size | Form B, industry |
Sealing principle | Soft seal |
Pilot | Internal |
Standards | ISO 5599-1 |
Pilot valve width | 22 mm |
Valve type | Spool valve |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Compressed air connection input | Base plate ISO 5599-1 |
Compressed air connection, exhaust | Base plate ISO 5599-1 |
Compressed air connection pilot exhaust | M5 |
Power consumption DC | 5 W |
Flow conductance C | 4.3 l/(s*bar) |
Frame size | ISO 1 |

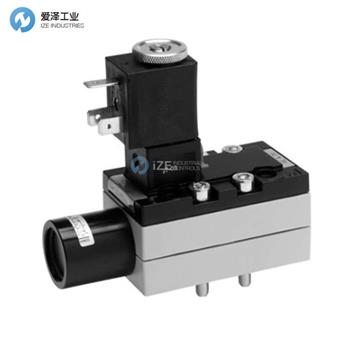

AVENTICS換向閥5811420100產品介紹
特點
? 標準化閥門系統
? 提供 ISO 1 至 4 尺寸
? 設計堅固
? 集成排氣節流閥
? 多種電壓范圍
? 壓力范圍可達 16 bar
? CNOMO 接口
? 尺寸小巧
? 換檔時間快
? 通過在線配置器輕松靈活地進行自定義配置
Features
? Standardized valve system
? ISO size 1 to 4 available
? Robust design
? Integrated exhaust throttles
? Numerous voltage ranges
? Pressure range up to 16 bar possible
? CNOMO interface
? Small dimensions
? Fast shifting times
? Easy and flexible custom specific configurations via online configurator
AVENTICS換向閥581系列其他常用型號：
AVENTICS 5811420500
AVENTICS 5811420200
AVENTICS 5811420100
AVENTICS 5811420600
AVENTICS 5811420300
AVENTICS 5811420400
AVENTICS 5811420000
AVENTICS 5811421500
AVENTICS 5811421200
AVENTICS 5811421100
AVENTICS 5811421600
AVENTICS 5811421300
AVENTICS 5811421400
AVENTICS 5811421000
AVENTICS 5811422500
AVENTICS 5811422200
AVENTICS 5811422100
AVENTICS 5811422600
AVENTICS 5811422300
AVENTICS 5811422400
AVENTICS 5811422000
AVENTICS 5811423500
AVENTICS 5811423200
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥5811420100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
