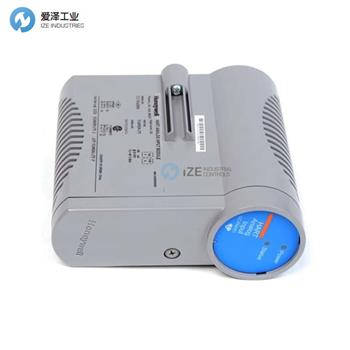

HONEYWELL模擬輸入模塊CC-PAIH02技術參數
Specifications | |
Input / Output Model | CC-PAIH02 - High-Level Analog Input with HART |
IOTA Models | Non-Redundant Redundant |
Input Type | Voltage, current (2-wire or self-powered transmitters) |
Input Channels | 16 Channels (12 Single Ended / 4 Differential ) |
Common Mode Rejection Ratio, dc to 60 Hz (500 Ω source imbalance) | 70 dB |
Common Mode Voltage, dc to 60 Hz | -6 to +5 V peak |
A/D Converter Resolution | 16 bits |
Input Range | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω) |
Normal Mode Rejection Ratio, at 60 Hz | 19 dB |
Normal Mode Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
Maximum Normal Mode Input (differential inputs, no damage) | ± 30 Volts |
Crosstalk, dc to 60 Hz (channel-to-channel) | -60 dB |
Input Impedance (voltage inputs) | > 10 M Ω powered |
Input Scan Rate | 50 ms |
Hardware Accuracy (@ CMV = 0 V) | ± 0.075% of full-scale (23.5°± 2°C) |
Transmitter Field Power Conditioning | Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required |
HONEYWELL模擬輸入模塊CC-PAIH01 / 02介紹
模擬輸入模塊接受來自發射器和傳感設備的高電平電流或電壓輸入。
特點
? 廣泛的自診斷功能
? 可選冗余
? 開路檢測
? 提供非易燃現場電源
? 非易燃電源
? 支持 HART 的多變量儀器和多個調制解調器，用于快速收集控制變量
? 快速循環掃描
? 通過開路檢測診斷進行光伏保護
? 開路不良光伏檢測
The Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.
Notable Features
? Extensive self-diagnostics
? Optional redundancy
? Open Wire Detection
? Supplies non-incendive field power
? Non-incendive Power
? HART-capable, multivariable instruments and multiple modems for fast collection of control variables
? Fast loop scan
? PV protection through an open wire detection diagnostic
? Open-wire Bad PV Detection
HONEYWELL模塊C系列其他常用型號：
HONEYWELL CC-PAIH01
HONEYWELL CC-PAIH02
HONEYWELL CC-PAIX01/02
HONEYWELL CC-PAIH51
HONEYWELL CC-PAIN01
HONEYWELL CC-PPIX01
HONEYWELL CC-PAIM01
HONEYWELL CC-PAIL51
HONEYWELL CC-PAOH01
HONEYWELL CC-PAOX01
HONEYWELL CC-PAOH51
HONEYWELL CC-PAON01
HONEYWELL CC-PDIL01
HONEYWELL CC-PDIS01
HONEYWELL CC-PDIL51
HONEYWELL CC-PDIH01
HONEYWELL CC-PDOB01
HONEYWELL ANALOG INPUT MODULE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL模擬輸入模塊CC-PAIH02的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
