VON ROHR氣動執行器MA系列技術參數
General data | |||||
Series | MA16 | MA21 | MA31 | MA41 | MA60 |
Max. stroke | 16 mm | 35 mm | 59 mm | 118 mm | 136 mm |
Diaphragm surface | 85 to 110 cm2 | 150 to 240 cm2 | 355 to 550 cm2 | 600 to 1135 cm2 | 1500 to 2185 cm2 |
Max. number of springs | 7 | 7 | 7 | 14 | 16 |
Max. force by springs | 2.6 kN | 4.3 kN | 8.4 kN | 25.2 kN | 45 kN |
Max. force by air | 4.6 kN | 8.5 kN | 22.4 kN | 40.5 kN | 87 kN |
Max. positioning signal | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
Operating temperature | –20 to +80°C (optionally – 40 to +80°C ) | ||||
Spring chamber | optionally with air scavenging | ||||
VON ROHR氣動執行器MA系列介紹

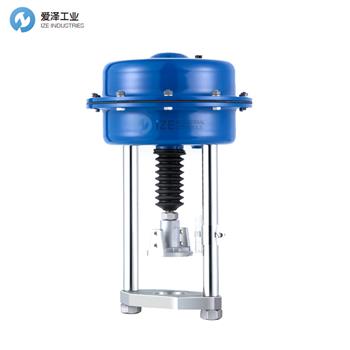

VON ROHR多彈簧執行器用于將壓力轉換為線性運動。它們可用作開關、控制閥、風扇可變擴壓器出口葉片的控制、帶行程運動的減溫器以及許多其他應用。這些執行器可在短時間內產生強大的驅動力，并且無需額外操作即可滿足防爆要求。
優勢：
適用于惡劣環境
磨損低
使用壽命長
運行成本低
組合多樣
5種執行器尺寸
120種不同彈簧組合
可實現多種行程
全部或部分采用不銹鋼材質
易于安裝定位器和其他設備
可輕松適配各種類型的閥門和其他
不同柱長的應用
完美適應運行條件
VON ROHR multi-spring actuators convert pressure into linear motion. They are used as switches, control valves, control the outlet vanes of variable diffusers on fans, operate desuperheaters with stroke motion, and many other applications. These actuators generate high actuation forces within a short period of time and meet explosion-proof requirements without the need for additional equipment.
Advantages：
Suitable for harsh environments
Low wear
Long service life
Low operating costs
Versatile combinations; Five actuator sizes
120 different spring combinations
Various strokes available
Fully or partially stainless steel construction
Easy installation of positioners and other equipment
Easily adaptable to various valve types and other applications
Optimized column lengths
Perfectly adapted to operating conditions
VON ROHR氣動執行器MA系列其他常用型號：
VON ROHR MA3H23.1.41A6 7S P0 S64S108
VON ROHR MA2.21A6 4S Po
VON ROHR MA 3.16 A6
VON ROHR MA 2.21 A6
VON ROHR MA 3.21 B6
VON ROHR MA 3.31 A6
VON ROHR MA 3.1.31 B6
VON ROHR MA 3.31 C6
VON ROHR MA 3.41 A6
VON ROHR MA3.31A6 7S Po S38 S124
VON ROHR MA3.31A6 7S Po S6
VON ROHR MA2.21A6 4S Po
VON ROHR Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VON ROHR氣動執行器MA3H23.1.41A6 7S P0 S64S108的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VON ROHR products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
VON ROHR氣動執行器MA系列MA3H23.1.41A6 7S P0 S64S108技術參數及介紹
