PARKER閥331N03-496131P9規格
Technical Specifications | |
Actuation Type: | Solenoid Operated |
Port Size: | 1/4" G . |
Coil Temperature Range: | -40 +50。C |
Power Supply Voltage: | 230V 50/60Hz |
Function: . | Spring & air return |
Body Material: | Anodized Aluminum |
Orifce Size: | 7,0 mm |
Maximum Operating Pressure: | 10 bar |
Seal Material: | NBR |
Electrical Connection: | 2 P + E plug according to EN 175301-803 type B |
Specifcations Met: | Manual Override |
Maximum Fluid Temperature: | 50 °C |
Insulation Class: | F 155"C |
Valve Type: | 3/2 Way |
Flow Cofficient 1: | 1250 /min |
Port Type: | Namur |
Media: | Dry or Lubricated Air |
Minimum Operating Pressure: | 2,5 bar |
Minimum Fluid Temperature: | -20 °C |
Coil Power Consumption: | 3W |
Coil Specifications Met: | CE- EAC |
ATEX Specifcations Met: | - |
PARKER閥331N03-496131P9產品介紹

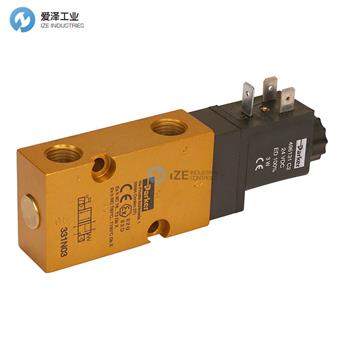

N "High Flow" NAMUR Series Solenoid Valves for Process applications | #331N03-496131P9
N "High Flow" NAMUR Series is a full range of NAMUR indirect operated solenoid valves, from 1/4" to 1/2", solenoid or air operated with a borad range of functions including 3/2, 5/2, 5/3.
N 用于過程應用的“高流量”NAMUR 系列電磁閥 | #331N03-496131P9
N “大流量”NAMUR 系列是全系列的 NAMUR 間接操作電磁閥，從 1/4" 到 1/2"，電磁或氣動，功能范圍廣泛，包括 3/2、5/2、5/ 3.
PARKER閥其他常用型號：
PARKER 331N03-496131P9
PARKER 341N03-496131C2
PARKER 341N03-496131P0
PARKER 341N03-496131P2
PARKER 341N03-496482C2
