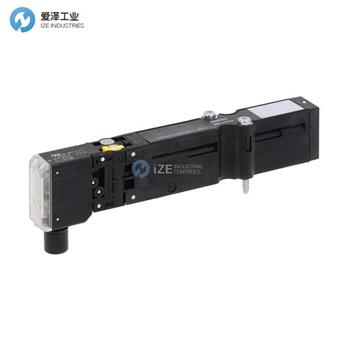

AVENTICS閥0820055101技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 850 l/min |
Working pressure min. | -0.9 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -0.75 |
Manual override | with detent |
Sealing principle | Soft Seal |
Pilot | External |
Certificates | UR (Underwriters Laboratories) |
Pilot valve width | 16 mm |
Valve type | Spool valve, positive overlapping |
Connection type | Plate connection |
Blocking principle | Single base plate principle |
Control pressure min. | 3 bar |
Control pressure max. | 10 bar |
Min. ambient temperature | 0 °C |
Max. ambient temperature | 50 °C |
Min. medium temperature | 0 °C |
Max. medium temperature | 50 °C |
Medium | Compressed air |
Max. particle size | 5 μm |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 1 mg/m3 |
Pilot control exhaust | With collective pilot air exhaust |
AVENTICS閥0820055101產品介紹
特征
? 模塊化設計，最多 32 個閥門和 32 個線圈
? 高流量，高達 850 升/分鐘
? 每個線圈 0.35 W 的先導閥
? 由于塑料底板和端板而優化了重量
? 直接安裝在裝配系統型材上
? 通過 Multipol 或現場總線連接實現高連接性
? 集成配件和所有連接均指向一個方向
Features
? Modular design with up to 32 valves and 32 coils
? High flow rate with up to 850 l/min
? Pilot valve with 0.35 W per coil
? Optimized weight due to plastic base and end plates
? Direct mounting on assembly system profiles
? High connectivity through Multipol or Fieldbus connection
? Integrated fittings and all connections pointed in one direction
AVENTICS閥HF03-LG系列其他常用型號：
AVENTICS 0820055101
AVENTICS 0820055201
AVENTICS 0820055301
AVENTICS 0820055311
AVENTICS DIRECTIONAL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS閥0820055101的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
