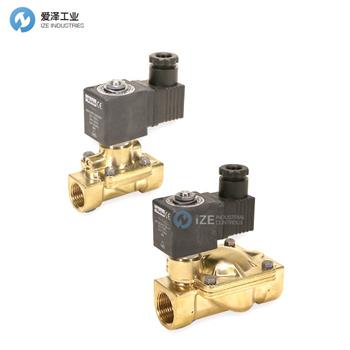

PARKER電磁閥7321BDN00介紹
Technical Specifications | |
Seal Material: | NBR |
Power Supply Voltage: | - |
Maximum Operating Pressure: | 20 bar AC/DC |
Coil Specifications Met: | - |
Maximum Fluid Temperature: | +90° C |
Orifice Size: | 25 mm |
Function: | Normally Closed |
Port Size: | G 1 |
Specifications Met: | - |
Valve Type: | 2/2 way |
Actuation Type: | Pilot Operated |
Port Type: | Pipe mounting |
Body Material: | Brass |
Media: | Water |
Seat Material: | Brass |
Exhaust Orifice Size: | - |
Flow Coefficient 1: | 160 L/min |
Flow Coefficient 2: | 9.6 m3/hour |
Minimum Operating Pressure: | 0,1 bar AC/DC |
Minimum Fluid Temperature: | -10 °C |
Coil Power Consumption: | - |
Electrical Connection: | - |
Coil Temperature Range: | - |
Insulation Class: | - |
ATEX Specifications Met: | - |
PARKER電磁閥其他常用型號：
PARKER 7321BDN00
PARKER 7321BDN01
PARKER 7321BDN02
PARKER 7321BEN00
PARKER 7321BEN01
PARKER 7321BEN02
PARKER 7321BFN00
PARKER 7321BFN01
PARKER 7321BFN02
PARKER The electromagnetic valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER電磁閥7321BDN00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
PARKER電磁閥7321BDN00技術參數及選型
