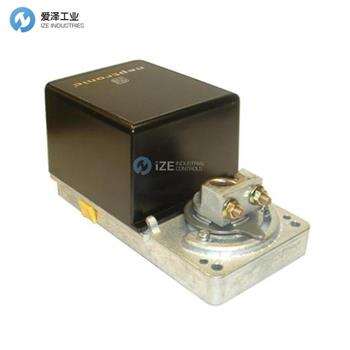

NEPTRONIC執行器BM000S技術參數
Specification | Description |
Torque | 50 in.lb. [5.6 Nm] at rated voltage |
Running Time through 90° | 90 to 110 seconds, (Fail safe 20 to 30 seconds) |
Electrical Connection | 18 AWG [0.8 mm2] minimum |
Control Signal | 2to10Vdcor4to20mA(default:2to10Vdc) |
Angle of Rotation | 0 to 90*, mechanically adjustable (default: 90° stroke) |
Direction of Rotation | Reversible, CW: Clockwise, CCW: Counter Clockwise (default: CW) |
Inlet Bushing | 2 inlet bushings: 13/16" [20 6mm] |
Ingress Protection | IP22 equivalent to Nema type 2, IP54 equivalent to Nema type 3R if water tight inlet bushings (not supplied NEP617) are installed for BM000S, BM060S, BM800S, BM860S |
Operating Temperature | -220F to 1220F [-30*C to 50°C] |
Storage Temperature | -220F to 1220F [-30°C to 50°C] |
Relative Humidity | 5 to 95 % non condensing |
Weight | 3lbs. [1.4 kg] |
NEPTRONIC執行器BMS系列其他常用型號：
NEPTRONIC BM000S
NEPTRONIC BM060S
NEPTRONIC BM800S
NEPTRONIC BM860S
NEPTRONIC BM020S
NEPTRONIC BM080S
NEPTRONIC BM820S
NEPTRONIC BM880S
NEPTRONIC ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEPTRONIC執行器BM000S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEPTRONIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
