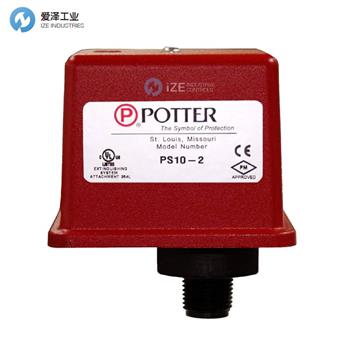

POTTER 防爆壓力開關PS10-2規格
Technical Specifications | |
Conduit Entrances | Two knockouts for 1/2” conduit provided. Individual switch compartments and ground screw suitable for dissimilar voltages |
Contact Ratings | SPDT (Form C) 10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC One SPDT in PS10-1, Two SPDT in PS10-2 |
Cover Tamper | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
Differential | 2 psi (0,13 bar) typical |
Dimensions | 3.78”(9,6cm)Wx3.20”(8,1cm)Dx4.22”(10,7cm)H |
Enclosure | Cover: Weather/UV/Flame Resistant High Impact Composite Base: Die Cast All parts have corrosion resistant finishes |
Environmental Limitations | -40o F to 140oF (-40oC to 60oC) |
Factory Adjustment | 4 - 8 psi (0,27 - 0,55 bar) |
Maximum System Pressure | 300 psi (20,68 bar) |
Pressure Connection | Nylon 1/2” NPT male |
Pressure Range | 4-15 psi (0,27 - 1,03 bar) |
Service Use | NFPA 13, 13D, 13R, 72 |
POTTER 防爆壓力開關其他型號：
POTTER PS10-1
POTTER PS10-2
GINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POTTER 防爆壓力開關PS10-EX的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for POTTER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
POTTER 防爆壓力開關PS10-2介紹
