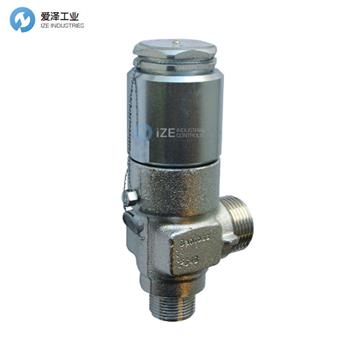

DANFOSS安全泄壓閥2416+321技術參數
Product details | |
Gross weight | 1.61 Kilogram |
Net weight | 1.56 Kilogram |
Volume | 1.326 Liter |
EAN | 5702428191906 |
Approval | CE |
CE evaluated | Yes |
Certified Coef of Disc | 0.43 kg |
China RoHS compliance | Out of scope |
Connection Internal/External | External |
Connection size [in] | 5/16 in |
Connection size [mm] | 8 mm |
Connection standard | ISO 228-1 |
Connection type | G |
Direction | Angleway |
EU RoHS compliance | Out of scope |
Flow area [in2] | 0.078 in2 |
Flow area [mm2] | 50 mm2 |
Flow diameter [in] | 0.315 in |
Flow diameter [mm] | 8 mm |
Fluid Group | 1 |
In scope of WEEE and contain batteries | No |
Inlet connection size [in] | 3/4 |
Inlet connection type | G |
Lift [mm] | 1.45 mm |
Nominal diameter | DN 15 |
Outlet connection size [in] | 1 |
PED category | IV |
Pressure certificate | TüV certificate included |
Pressure setting [bar] | 17 bar |
Pressure setting [psig] | 247 psig |
Product description | Safety Relief Valve |
Product group | Safety relief valves |
Product Name Description | Safety relief valve |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Temp. range with POV [°C] [max] | 100 °C |
Temp. range with POV [°C] [min] | -50 °C |
Temp. range with POV [°F] [max] | 212 °F |
Temp. range with POV [°F] [min] | -58 °F |
Temp. range w. Safety valve [°C] [max] | 100 °C |
Temp. range w. Safety valve [°C] [min] | -30 °C |
Temp. range w. Safety valve [°F] [max] | 212 °F |
Temp. range w. Safety valve [°F] [min] | -22 °F |
Temperature range [°C] [max] | 100 °C |
Temperature range [°C] [min] | -30 °C |
Temperature range [°F] [max] | 212 °F |
Temperature range [°F] [min] | -22 °F |
Type | BSV 8 |
UK RoHS compliance | Out of scope |
DANFOSS安全泄壓閥BSV8系列其他常用型號：
DANFOSS 2416+200
DANFOSS 2416+202
DANFOSS 2416+204
DANFOSS 2416+205
DANFOSS 2416+206
DANFOSS 2416+207
DANFOSS 2416+210
DANFOSS 2416+222
DANFOSS 2416+310
DANFOSS 2416+314
DANFOSS 2416+315
DANFOSS 2416+201
DANFOSS 2416+203
DANFOSS 2416+209
DANFOSS 2416+224
DANFOSS 2416+225
DANFOSS 2416+311
DANFOSS 2416+313
DANFOSS 2416+316
DANFOSS 2416+318
DANFOSS 2416+321
DANFOSS 2416+208
DANFOSS 2416+211
DANFOSS 2416+221
DANFOSS 2416+309
DANFOSS 2416+312
DANFOSS 2416+317
DANFOSS 2416+319
DANFOSS 2416+320
DANFOSS 2416+322
DANFOSS 2416+323
