X-SENSORS放大器X-201-KA03系列技術參數
Specifications | |
Performance | |
Factory default sensitivity | 1 mV/V |
Range of sensitivity | 0.5...1.5/1.5...4.0 mV/V |
Linearity | < 0.05% from full-scale |
Zero drift over temperature range | < 0.01% / °C |
Cut-off frequency | 0...5 kHz (-3dB) |
Signal path | Analogue |
Electrical data | |
Power supply | 18...28 VDC, <70mA |
Output signal at full scale | Voltage output: 0...±10 V @ Rload 3 KΩ |
Ripple voltage | Max. 1 Vpp / 50 Hz |
Noise | Max. 20 mVpp (0...5kHz) |
DMS resistance of sensor input | 5 V: 120 Ω...10 KΩ |
Zero point adjustment | |
Adjustment range | Coarse configuration by DIP switches: -75%... +75%, in 5 ranges |
Max. adjustment | ±10 mV |
Mechanical data | |
Material | Polycarbonate fiber reinforced, UL 94 V0 |
Environmental data | |
Ambient temperature | -20...+60 °C |
EMV standards | EN 61000-4 |
Protection rate | IP 52 |

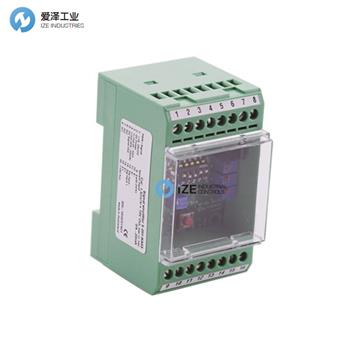

X-SENSORS放大器X-201-03系列介紹
應變計放大器，輸出 4…20 mA 和 0…10 V
特點
? 預載零點可大范圍調整
? 連接應變計傳感器時靈敏度范圍從 0.5 mV/V 到 4.0 mV/V
? 同時輸出電壓和電流
? 橋路激勵可在 5 V 或 10 V 之間選擇
X-201 旨在放大基于應變計技術的力和應變傳感器的低電平信號。它可用于信號調節和與 PLC 或任何具有模擬輸入的控制單元接口。
由于集成了 DIP 開關和電位計，放大器可以輕松配置為所需的輸入范圍和零點偏移。X-201 針對靜態測量進行了優化，例如應力分析和稱重應用。通常，用戶希望獲得精確的比例信號，沒有任何偏移或零點誤差。因此，安裝后必須調整整個測量鏈的零點。如果零點誤差在幾個百分點以內，則可以使用零點電位計非常輕松地調整此誤差。但是，如果零點偏移較大，則 DIP 開關會粗略地預選調整范圍。通過這樣做，還可以抑制較大的預載或包裝重量。
放大器可用于 DIN 導軌安裝，并采用堅固的鋁制外殼。
Strain gauge amplifier with 4…20 mA and 0…10 V output
Features
? Large adjustment of zero for preload
? Ranges of sensitivity from 0.5 mV/V up to 4.0 mV/V for the connection of strain gauge sensors
? Featuring both voltage and current output simultaneous
? The bridge excitation can be selected between 5 V or 10 V
The X-201 is designed to amplify low-level signals from force and strain-sensors basing on the strain-gauge technique. It is considered for signal conditioning and interfacing to PLC's or any control-unit with analogue inputs.
Thanks to the integrated DIP-switches and potentiometer, the amplifier can be easily configured to the desired input range and zero offset. The X-201 is optimized for static-measurement, like stress analysis and weighing applications. Very often, the user wants an exact proportional signal without any offset or zero-errors. Therefore, the zero of the whole measuring chain has to be adjusted after installation. If the zero error is within a few percent, one can adjust this error very easily by using the zero potentiometer. However, if the zero-offset is larger, the DIP-switches do preselect the adjusting range roughly. By doing so, also large preloads or packaging weights can be suppressed.
The amplifier is available for DIN-rail mounting and in a robust aluminium field housing.
X-SENSORS放大器X-201-03系列其他常用型號：
X-SENSORS X-201-IP03
X-SENSORS X-201-KA03
X-SENSORS X-201-KA03-985
X-SENSORS SIGNAL-AMPLIFIER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于X-SENSORS放大器X-201-KA03-985的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for X-SENSORS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
