AVENTICS壓力開關R412010718技術參數
Specifications | |
Function | change-over contact (mechanical) |
Type | Diaphragm, spring loaded, adjustable |
Mounting orientation | Any |
Operating pressure min | 0.2 bar |
Operating pressure max | 16 bar |
Compressed air connection type | Flange with O-ring |
Compressed air connection | ? 5x1,5 |
Min. ambient temperature | -20 °C |
Max. ambient temperature | 80 °C |
Min. medium temperature | -10 °C |
Max. medium temperature | 80 °C |
Medium | Hydraulic oil, Compressed air |
Measurement | Relative pressure |
Operating voltage DC, min. | 12 V DC |
Operating voltage DC, max. | 125 V DC |
Operating voltage AC, min. | 12 V AC |
Operational voltage AC, max. | 250 V AC |
Switching element | microswitch (input/output) |
Protection against overpressure | 80 bar |
Max. switching frequency | 100/min. |
Shock resistance max. | 15 g |
Vibration resistance | 10 g (60 - 500 Hz) |
Repetitive precision | ± 2 % |
Switching point | adjustable |
Hysteresis | max. switching pressure difference |

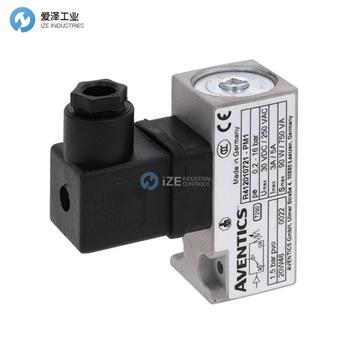

AVENTICS壓力開關PM1系列介紹
產品描述
AVENTICS PM1系列是一款用于測量壓縮空氣和非腐蝕性氣體的緊湊型壓力開關。PM1系列允許用戶選擇不同的壓力范圍，從-0.9到16 bar。
特征
堅固的外殼
可提供的壓力范圍為 -0.9 至 0 巴、-0.9 至 1 巴、-0.9 至 3 巴 或 0.2 至 16 巴
多種工藝連接
提供 ATEX 版本
Product Description
The AVENTICS Series PM1 is a compact pressure switch for measuring compressed air and non-aggressive gases. The Series PM1 allows users to select between different pressure ranges from -0.9 to 16 bar.
Features
Robust housing
Available with the pressure ranges -0.9 to 0 bar, -0.9 to 1 bar, -0.9 to 3 bar or 0.2 to 16 bar
Various process connections
ATEX version available
AVENTICS壓力開關PM1系列其他常用型號：
AVENTICS R412010711
AVENTICS R412010712
AVENTICS R412010713
AVENTICS R412010714
AVENTICS R412010715
AVENTICS R412010716
AVENTICS R412010717
AVENTICS R412010718
AVENTICS R412010720
AVENTICS R412010721
AVENTICS R412010731
AVENTICS R412022752
