PARKER氣動執行器PRN150D-90-45技術參數
Switch Type | No switch |
Switch Option | No switch |
Additional Options | Standard |
Port Position | Standard |
Mounting | No mounting hardware |
Shaft Type | Standard |
Outer Wire Type | 1m(Standard) |
Oscillating Reference Point | 45° |
Options | Double |
Oscillating angle | 90° |
Media | Non-lubricated Air (Lubricated air) |
Oscillating Reference Point | 45 ° |
Minimum Operating Pressure | 0.6 bar |
Pressure Rating | 2 to 10 bar |
Proof Pressure | 15 |
Maximum Operating Temperature | 5 to 60 °C |
Frequency | 2 Hz |
Volume | 127 cm3 |
Axial Load Capacity | 1176 N, 88.2 N |
Allowable Energy | 225.4 mJ |
Weight | 2 kg |
Torque Rating (Nm) | 4150 at 5 bar |
Port Size | Rc1/4 |

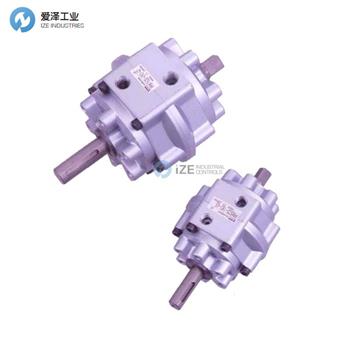

PARKER氣動執行器PRN系列介紹
旋轉執行器“Hi-Rotor”是一種高效便捷的利用壓縮空氣產生扭矩的方式，體積非常緊湊。Hi-Rotor 是包裝、加工、電子等眾多行業緊湊型應用的理想選擇。
緊湊設計
- 單葉片和雙葉片
- 耐用結構
- 超長免維護壽命
- 高輸出扭矩/重量比。5 bar 時扭矩范圍為 12.9 至 20,600Ncm
- 多種安裝方式，包括液壓緩沖器和位置傳感器
- 角度可調（PRO(A) 系列）
Rotary actuators, "Hi-Rotor", are an efficient and easy way to generate torque from compressed air, in a very compact size. Hi-Rotor are ideal for the compact application in a wide range of industries such as , packaging, process, electronics etc.
- Compact design
- Single and double vane
- Durable construction
- Long maintenance-free life
- High output torque / weight ratio. 12.9 to 20,600Ncm at 5 bar
- Range of mounting option, hydro-cushion and position sensors
- Angle adjustable (PRO(A) series)
PARKER氣動執行器PRN系列其他常用型號：
PARKER PRN50DE-90-45
PARKER PRN50D-90-45
PARKER PRN800SE-270-45
PARKER PRN800SE-180-45
PARKER PRN800SE-90-45
PARKER PRN150DE-90-45
PARKER PRN300D-90-45
PARKER PRN300DE-90-45
PARKER PRN800D-90-45
PARKER PRN800DE-90-45
PARKER PRN150D-90-45
PARKER rotary actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER氣動執行器PRN150D-90-45 的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
