MTL總線電源F892-CA-PS技術參數
Used with | For horizontal DIN rail mounting |
Special features | Carrier, unpopulated |
Area classification | Hazardous/Classified Locations |
Standards type | IECEx/ATEX |
NEC hazardous rating | Class I, Zone 2 |
Ingress protection (IP) ratings | IP20 |
Supply Voltage DC | 19.2-30 Vdc |
Field and Power Terminals | Pluggable screw terminal connectors |
Supporting Protocol for PROFIBUS | Profibus PA |
Supporting Protocol for Foundation Fieldbus | Foundation? fieldbus H1 |
EMC Compliance | EN61326:1998 |
Cable Screen Ground Connections | User-selectable jumper for segment |
Terminators | A single termination is provided |
Minimum Ambient Operating Temperature | -40 °C |
Maximum Ambient Operating Temperature | 50 °C |
Minimum Ambient Storage Temperature | -40 °C |
Maximum Ambient Storage Temperature | 85 °C |
Rail Mounting Possible | DIN rail |
Alarm Contact Rating | 1A maximum at 30 Vdc maximum |
Alarm Contact Status | Normally closed |
System and Optional Diagnostics Segment Terminals | 3-way fixed screw terminal connector |
Alarm and Ground Terminals | 4-way fixed screw terminal connector |
Physical Network | IEC61158-2 |
MTL總線電源F892-CA-PS產品介紹

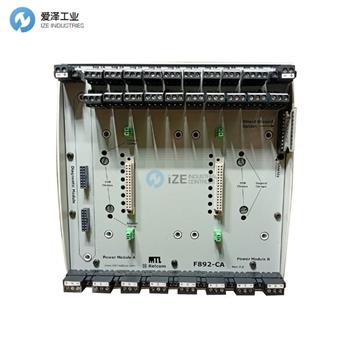

Eaton Crouse-Hinds 系列 MTL F892 冗余現場總線電源，19.2-30 Vdc，Profibus PA，F(xiàn)oundation 現場總線 H1，DIN導軌安裝，可插拔螺釘端子連接器，載體，未填充，用于水平 DIN 導軌安裝
Eaton Crouse-Hinds series MTL F892 redundant fieldbus power supply, 19.2-30 Vdc, Profibus PA, Foundation fieldbus H1, DIN rail mount, Pluggable screw terminal connectors, Carrier, unpopulated, For horizontal DIN rail mounting
MTL總線電源其他常用型號：
MTL F892-CA-PS
MTL F892-CA-PC
MTL F892-2-PS-NR
MTL F892-2-PS
MTL MTL F892-2-PC-NR
MTL F892-2-PC
MTL F892-PC
MTL F892-PC-NR
MTL F892-PS
MTL F892-PS-NR
MTL power supply NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MTL總線電源F892-CA-PS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MTL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
