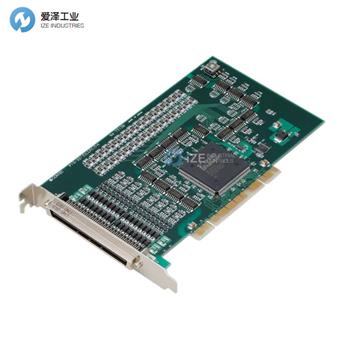

CONTECDO板卡PIO-32/32L(PCI)H技術參數
Specifications | |
Add-on Module | |
Series | |
Bus Specification | PCI |
Size | Short Size |
Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O | |
Input Channels | 32-ch |
Output Channels | 32-ch |
Bi-directional I/O Channels | - |
Response Time (Input) | 200μsec (max.) |
Response Time (Output) | 200μsec (max.) |
Operating Voltage (Input) | 12 to 24VDC |
Operating Voltage (Output) | 12 to 24VDC |
Input Circuit | Opto-isolated input (for sink current output) |
Output Circuit | Opto-isolated open-collector output (current sink type) |
Built-in Power Supply | - |
CONTECDO板卡PIO-32/32L(PCI)H介紹
概述 / 特點
本產品是符合PCI總線規范的接口板，能夠輸入和輸出數字信號。數字信號的電壓范圍為12V至24V直流電，可以進行輸入和輸出。該產品最多支持32點輸入和32點輸出，全部集成在一塊板子上。配備有適用于Windows和Linux的驅動程序（API-PAC(W32)）。
由于其采用16點單元的共同結構，每個公共線路都可以響應不同的外部電源供電。PCI總線（個人電腦）與輸入/輸出接口之間通過光耦隔離，提高了抗噪聲能力，具有優秀的抗干擾性能。
該接口板支持最多32點輸入中斷，并且可以作為中斷用的輸入信號的邊沿檢測。此外，設有數字濾波功能，以防止噪聲或抖動引起的誤輸入。
每個輸出點的最大額定電壓為35V直流，最大電流為100mA。輸出晶體管上連接有齊納二極管，用于抗沖擊電壓。此外，每八個輸出晶體管配備有過電流保護元件。
Overview / Features
This product is the interface board of the PCI bus conformity which outputs and inputs a digital signal. The digital signal of 12 to 24VDC can be outputted and inputted. The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. The driver (API-PAC(W32)) for Windows and Linux appending.
The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. Because of the common composition of a 16-point unit, each common line can respond to a different external power supply.
Since the PCI bus (personal computer) and the input/output interface are isolated by the photo-coupler, it excels in noise-protection nature.
It can interrupt and 32 points of an input signal can be used as an input. Moreover, the edge of the input signal can also generates interruption.
It has the digital filter function for preventing the incorrect input by the noise or the chatering.
The rating of an output signal is a maximum of 35 VDC and 100mA per point. Zener diode is connected to an output transistor for protection from surge voltage. Moreover, the over-current protection element is attached per eight output transistors.
