SIT閥230系列技術參數
| Technical Data | |
| Body Material | Brass (Ms 58), 1.4305 (V2A), 1.4571 (V4A) |
| Internal Parts Material | 1.4104/1.4305 |
| Static Seal Material | FPM (Viton) |
| Dynamic Seal Material | FPM (Viton) |
| Mounting Position | Required (Upright is preferred) |
| Switching Frequency | 240/min (with air) |
| Electrical Data | |
| Connection voltage | 24 V DC |
| 230 V 50/60 Hz | |
| Power consumption | 18 W DC |
| AC power supply | 26 VA |
| Power output | 14 VA |
| Electrical connection lugs | 2-pole + ground |
| Connection via appliance socket | |
| Temperature class E (90°C) in accordance with VDE580 | |
| Duty cycle | 100% ED |
| Voltage tolerance | ±10% |
| Frequency tolerance | ±5% |
| Process connection thread G1/8 - G1/2 | |
| Nominal diameter | 0.8 - 8 mm |
| Pressure range | 0 – 70 bar |
| Temperature class | E 80°C |
| Current consumption | 750 mA |
| Threaded connection, flange, block design | |
| No differential pressure required | |
| Protection class IP00 (with device socket IP65 EN 60529) | |
| Coil conforms to DIN EN 173301-803 (formerly DIN 43 650) | |
SIT閥233系列介紹
2/2 通閥桿(231 系列法蘭閥門)
工藝連接 G:G1/8 – G1/4(可根據要求提供其他連接和歧管上的更多閥門)
2/2-Way Stem (231 Series Flanged Valve)
Process Connection G: G1/8 – G1/4 (Other connections and additional valves on the manifold available upon request)
SIT閥230系列其他常用型號:
SIT 233.01.00069
SIT 230
SIT 231
SIT 232
SIT 233
SIT valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIT閥233.01.00069的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SIT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

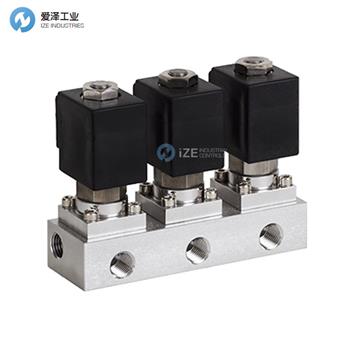

SIT閥233系列233.01.00069介紹
