Front dimension:

? 29 mm

Front form:

Round

Front bezel colour:

Grey

Front bezel material:

Plastic

Mounting

Design:

Raised

Mounting type:

Panel mounting

Operating-/Indication part

Lens colour:

Colourless

Lens material:

Plastic

Lens illumination:

Illuminated

Lens shape:

Flush

Lens optics:

transparent

Electrical characteristics

Standards:

The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1

Mechanical Characteristics

Switching action:

Momentary

Mechanical lifetime:

≤3 Mil. cycles of operation

Operating force:

8 N

Operating Travel:

ca. 5.8 mm ± 0.2 mm

Weight:

0.032 kg

Ambient Condition

IP Protection:

IP65 front side

Operating temperature:

– 40 °C … + 55 °C

Storage temperature:

– 40 °C … + 85 °C

Certificate

REACH:

REACH compliant

RoHS:

RoHS compliant

Other

Short Description:

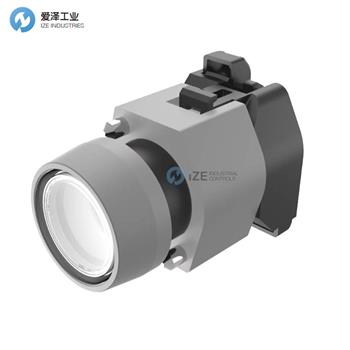

Actuator, ? 29 mm, Flush, Illuminated, Colourless, Plastic, transparent, Round, Grey, Plastic, Momentary

Housing colour:

Grey

Housing material:

Plastic

Hints:

Frontring with protective cover to be mounted with a torque of 0.4 Nm onto actuator
Max. 3 switching elements can be clipped on
The lamp block will be delivered with screw terminal

max. number of switching elements:

3
