VACUUBRAND模擬-I/O-模塊636229產品參數
Technical data | |
Ambient conditions | (US) |
Working temperature | 10-40 °C |
Storage/transport temperature | -10-60 °C |
Max. operating altitude | 3000 m above sea level |
Relative humidity | 30 85 %, non condensing |
Electrical data | |
Signal input IN /Signal output OUT | 0-10 V DC extra low voltage |
Input impedance | 10 kOhm |
Input current, max. | 35 mA |
Input voltage, max. | 60 V DC |
Resolution, input | 10 mV |
Output current, max. | 30 mA |
Output voltage | 0-10 V DC |
Resolution, output | 2.5 mV |
Power consumption, max. | 50 mA |
Supply via VACUU·BUS? | 24 V DC |
Protection class | IP 20 |
Interface | VACUU·BUS |
Status display | Twin LED +B13:C21red/green |
VACUUBRAND模擬-I/O-模塊636229產品介紹
描述
模擬I / O模塊是用于VACUU的模擬接口·BUS真空測量儀和控制器的系統。輸入和輸出信號遵循0-10 V的工業標準。在模塊的默認配置中，實際真空值表示為0-10V輸出。因此，控制器CVC 3000和測量儀DCP 3000可以輕松連接到繪圖儀并用于GMP文檔。其他模塊配置允許輸入和輸出真空水平和電機速度為0-10V信號。
性能特點
真空測量的模擬輸出為0-10 V信號
目標真空的模擬設置為0-10 V信號
配置為輸入和馬達速度的集合和/或?qū)嶋H值的輸出與VARIO泵或VARIO抽油機
模擬輸出信號的分辨率為2.5 mV
彩色LED狀態指示
Description
The Analog-I/O-Module is an analog interface for the VACUU·BUS? system of vacuum measuring gauges and controllers. The input and output signal follows the industry standard of 0-10 V. In the default configuration of the module the actual vacuum value is indicated as a 0-10V output. Therefore the controller CVC 3000 and the measuring gauge DCP 3000 can be easily connected to a plotter and used for GMP documentation. Other module configurations allow input and output of vacuum level and motor speed as 0-10V signals.
Performance features
analog output of the vacuum measurment as a 0-10 V signal
analog setting of the target vacuum as a 0-10 V signal
configurable for the input and output of set and/or actual values of the motor speed with VARIO? pumps or VARIO? pumping units
resolution of the analog output signal is 2.5 mV
color LED status indication

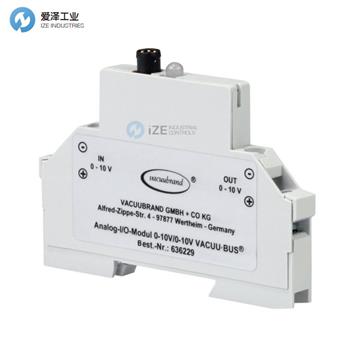

VACUUBRAND模擬-I/O-模塊636229
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件VACUUBRAND 模擬-I/O-模塊部分型號：
VACUUBRAND 636229
VACUUBRAND 674290
VACUUBRAND 674291
VACUUBRAND 674210
VACUUBRAND 674215
VACUUBRAND 674220
VACUUBRAND 674217
VACUUBRAND 699908
VACUUBRAND 612552
VACUUBRAND 636656
VACUUBRAND 636153
VACUUBRAND 636228
VACUUBRAND Analog-I/O-Module VACUU·BUS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VACUUBRAND模擬-I/O-模塊636229的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VACUUBRAND products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
