BELIMO控制閥R2015-S系列技術參數
Functional data | |
Media | Cold and warm water, water with glycol up to max. 50% vol. |
Medium temperature | -10...120°C |
Medium temperature note | The allowed media temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators. |
Rated pressure ps | 1600 kPa |
Closing pressure ?ps | 1400 kPa |
Differential pressure ?pmax | 350 kPa |
Differential pressure note | 200 kPa for low-noise operation |
Flow characteristic | Equal percentage (VDI/VDE 2178), optimised in the opening range |
Leakage rate | Leakage rate A, air-bubble-tight (EN 12266-1) |
Pipe connectors | Internal thread according to ISO 7-1 |
Angle of rotation | 90° (Operating range 15...90°) |
Installation position | Upright to horizontal (in relation to the stem) |
Maintenance | Maintenance-free |
Materials | |
Housing | Brass body nickel-plated |
Closing element | Stainless steel |
Stem | Stainless steel |
Stem sea | O-ring EPDM |
Valve seat | PTFE, O-ring EPDM |
Characterising disc | TEFZEL |

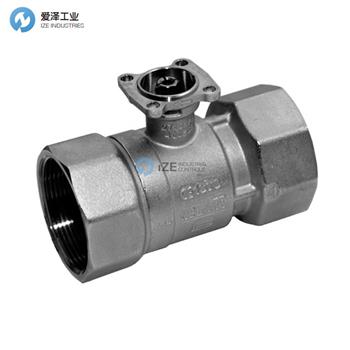

BELIMO控制閥R2015-P63-S1產品介紹
Characterised control valve, 2-way,Internal thread
? For open and closed cold and warm water systems
?For modulating water-side control of air handling units and heating systems
?Air bubble tight
特色控制閥，二通，內螺紋
?用于開放式和封閉式冷熱水系統
?用于調節空氣處理機組和加熱系統的水側控制
?氣泡緊
BELIMO控制閥R2015-S系列產品介紹及選型
BELIMO控制閥R2015-S系列其他型號：
BELIMO R2015-P25-S1
BELIMO R2015-P4-S1
BELIMO R2015-P63-S1
BELIMO R2015-1-S1
BELIMO R2015-1P6-S1
BELIMO R2015-2P5-S1
BELIMO R2015-4-S1
BELIMO R2015-6P3-S1
BELIMO R2020-4-S2
BELIMO R2020-6P3-S2
BELIMO R2020-8P6-S2
BELIMO R2025-6P3-S2
BELIMO R2025-10-S2
BELIMO R2025-16-S2
BELIMO R2032-16-S3
BELIMO R2040-16-S3
BELIMO R2040-25-S3
BELIMO R2050-25-S4
BELIMO R2050-40-S4
BELIMO Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BELIMO控制閥R2015-P63-S1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BELIMO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

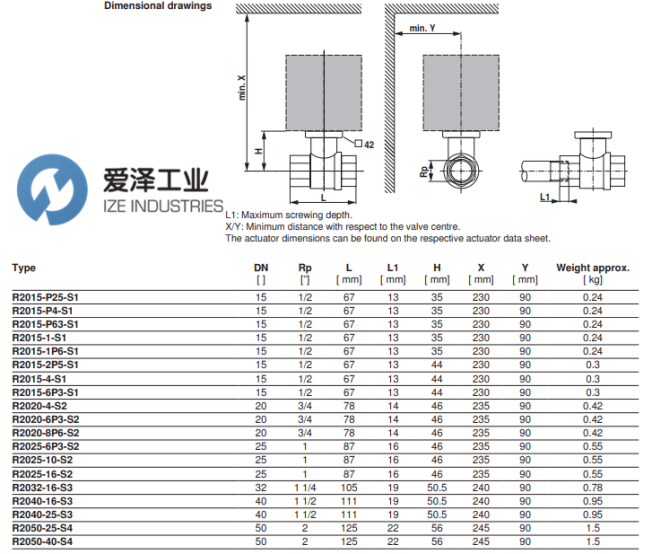

BELIMO控制閥R2015-S系列 R2015-P63-S1電氣及機械參數
