ROSS閥D2173B4012技術參數
Details | |
Valve Type | Directional Control |
Series | 21 |
Default Position | Normally Closed |
Return | Spring |
Exhaust Pipe Size | 1/2" |
Construction | Poppet |
Mounting | Inline |
Connection | Hardwired |
Manual Override | Non-locking |
Size | 3/8 |
Duty Rating | Continuous Duty |
Power Consumption | 87 VA inrush, 30 VA holding on 50/60 Hz |
Fluid Media | Filtered air |
Operating Pressure | 30 to 150 psig (2 to 10 bar) |
Pilot Supply Minimum | Equal to or greater than inlet pressure |
Length | 3.56 in (90 mm) |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Aluminum and Stainless Steel |
Seal Material | Fluorocarbon |
Application | Low Temperature |
Actuation | Electrical |
Thread Type | G |
Pilot Type | Internal/External |
Ambient Temperature | -40 to 120 F (-40 to 50 C) |
Media Temperature | -40 to 175 F (-40 to 80 C) |
Inlet Pipe Size | 1/2" |
Outlet Pipe Size | 1/2" |
Cv (1-2) | 3 |
Function | 3/2 Single Solenoid |
Weight | 3.0 lb (1.4 kg) |
Width | 3.03 in (77 mm) |
Cv (2-3) | 5.2 |
Height | 7.34 in (186 mm) |
ROSS閥21系列介紹

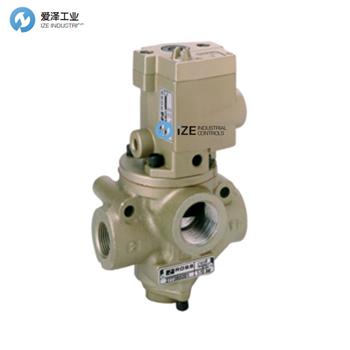

21 Series Low Temp 3/2 Single Solenoid Valve, Normally Closed, G1/2" (In-Out), G1/2" (Exhaust)
21 系列低溫 3/2 單電磁閥，常閉，G1/2"（入口-出口），G1/2"（排氣）
ROSS閥21系列其他常用型號：
ROSS D2173B4012
ROSS D2173B4012W
ROSS D2173B4012S
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥D2173B4012的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
