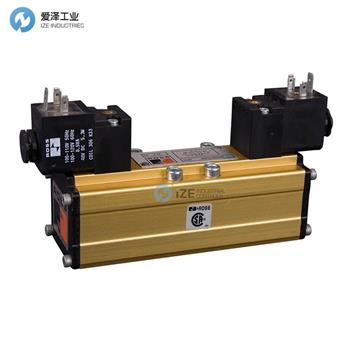

ROSS閥W6476B4407技術規格
DESCRIPTION: | ISO 5599/I ISO Size 3, W64 Series, 5/2 Double, Solenoid Controlled, Poppet, Standard Temp, Non-Locking Manual Override, 24 VDC |
ISO SIZE | 3 |
BASE PORT SIZE | 1/2 - 3/4 |
FUNCTION | 5/2 Double |
VOLTAGE | 24 VDC |
MANUAL OVERRIDE | Non-Locking |
CONSTRUCTION | Poppet |
MOUNTING | Base Mounted |
ACTUATION | Solenoid Controlled |
AVG CV | 4 |
APPLICATION | Standard Temp |
FLOW MEDIA | Filtered Air |
INLET PRESSURE RANGE | VACUUM to 150 PSIG (VACUUM to 10 BAR) |
MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
AMBIENT TEMPERATURE RANGE | 40 to 120 F (4 to 50 C) |
WEIGHT: | 3.3 lbs (1.5 kg) |
ROSS閥W6476B4407介紹
提升閥設計尤其適用于不潔空氣
ISO 1、2 和 3
5/2 或 5/3 選項
單底座和歧管底座安裝
DIN 插頭連接器
Poppet design very tolerant of dirty air
ISO 1, 2, and 3
5/2 or 5/3 options
Single base and manifold base mounting
DIN Plug connectors
ROSS閥W64系列其他常用型號：
ROSS W6476B2407
ROSS W6476B2417
ROSS W6476B3407
ROSS W6476B3417
ROSS W6476B4407
ROSS W6476B4417
ROSS W6476B2401
ROSS W6476B2411
ROSS W6476B3401
ROSS W6476B3411
ROSS W6476B4401
ROSS W6476B4411
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥W6476B4407的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
