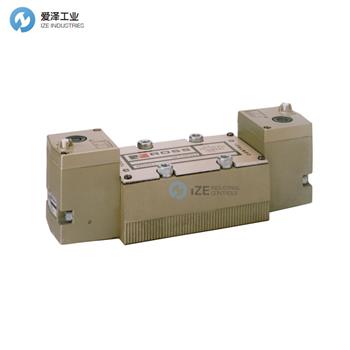

ROSS閥W707C8332規格介紹
Valve Type | Directional Control |
Usage Models | W70 |
Valve Standard | ANSI |
Application | General |
Actuation | Electrical |
Function | 5/3-Way, Double Solenoid |
Default Position | Normally Open |
Center Position | Open |
Return | Detented |
Construction | Spool and Sleeve |
Mounting | Base Mount |
Connection | Hardwired |
Pilot Type | Internal/External |
Manual Override | Non-locking |
Size | 20 |
Avg Cv | 22 |
Voltage | 110/120 VAC |
Duty Rating | Continuous Duty |
Power Consumption | 140 VA inrush, 30 VA holding on 50 or 60 Hz |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Ambient Temperature (Celcius) | 4 to 50 |
Media Temperature | 40 to 175 F (4 to 80 C) |
Media Temperature (Celcius) | 4 to 80 |
Fluid Media | Filtered air |
Operating Pressure | Vacuum to 150 psig (10 bar) |
Operating Pressure (bar) | Vacuum to 10 |
Pilot Supply Minimum | Equal to or greater than inlet pressure |
Length | 5.57 in (141 mm) |
Length (mm) | 141 |
Width | 16.42 in (417 mm) |
Width (mm) | 417 |
Height | 4.08 in (104 mm) |
Height (mm) | 104 |
Weight | 15.3 lb (6.9 kg) |
Weight (kg) | 6.9 |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Stainless Steel |
Seal Material | Buna-N |
ROSS閥W70系列其他常用型號：
ROSS W7077A2331
ROSS W7077A2332
ROSS W7077A3331
ROSS W7077A3332
ROSS W7077D4331
ROSS W7077D4332
ROSS W7077C6331
ROSS W7077C6332
ROSS W7077C8331
ROSS W7077C8332
ROSS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥W707C8332的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
ROSS閥W707C8332介紹
