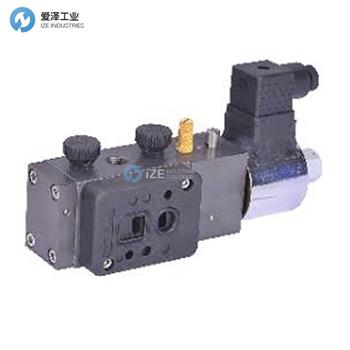

ROTEX電磁閥51450V02-6-2R-B5+24V-DC-37-H-01產品參數
VALVE SPECIFICATION | |
ITEM CODE | TBA |
ROTEX VALVE CODE | 51450V02-6-2R-B5++I-24V-DC-37-H-01 |
MODEL NAME | 5/2, 3/2 Convertible Inline Poppet, Spring Return, Namur Single Solenoid Valve |
QUANTITY | 4 No |
END CONNECTION | 1/4" NPT (F) |
MEDIA | AIR/INERT GAS |
OPERATING PRESSURE | 2 TO 10 bar (g) |
TEMPERATURE | -25°C TO 75°C |
ORIFICE | NW = 6 mm |
FLOW FACTOR | kv = 12 lit/min |
MANUAL OVERRIDE | Push & Turn Type |
COIL INSULATION | CLASS “H” |
COIL ENCLOSURE | Explosion Proof Enclosure Ex d |
COIL VOLTAGE | 24V DC (-20%, +20%) |
POWER CONSUMPTION | 8 Watts |
SEAT MATERIAL | NBR |
BODY MATERIAL | Stainless Steel 316 with internal wetted parts of SS 316 |
CABLE ENTRY | Horizontal Cable Entry 1/2" NPT |
ROTEX電磁閥52S系列產品介紹

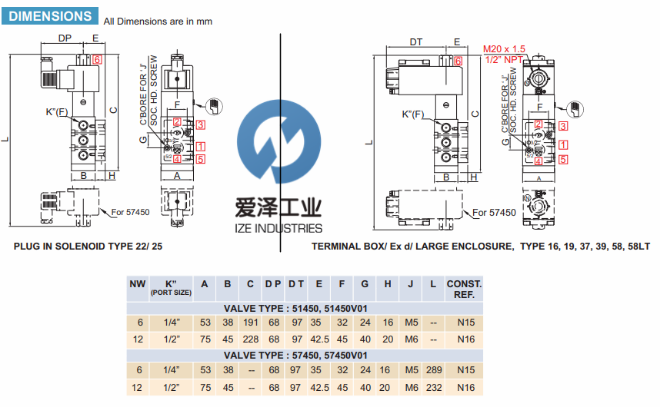

外觀尺寸

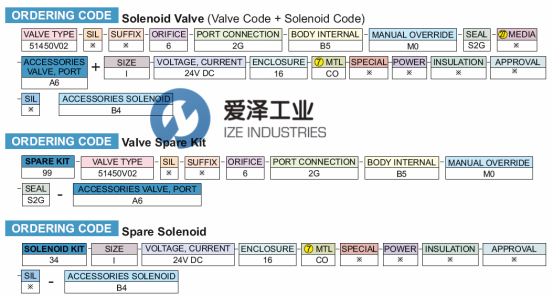

選型參考
ROTEX電磁閥52S其他常見型號：
ROTEX 51400-6-2G-M6
ROTEX 5324130216
ROTEX 51450-NCW-6-2R
ROTEX 51450NCW-6-2R-M6
ROTEX 51424-6-2G-M6
ROTEX 51450V01-6-2R-M6
ROTEX 51450V02-6-2R-M6
ROTEX 51450V02-6-2R-B5+24V-DC-37-H-01
ROTEX Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROTEX電磁閥51450V02-6-2R-B5+24V-DC-37-H-01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROTEX products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

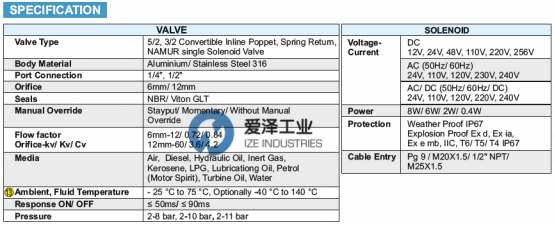

ROTEX電磁閥51450V02-6-2R-B5+24V-DC-37-H-01技術參數
