SAMSON定位器3725系列技術參數
Technical data | |
Minimum current | 3.8 mA |
Load impedance | Max. 6.3 V (corresponds to 315 ? at 20 mA) |
Signal pressure (output) | 0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software |
Characteristic | 3 characteristics for globe valves · 9 characteristics for rotary valves |
Hysteresis | ≤0.3 % |
Sensitivity | ≤0.1 % |
Transit time | Only for actuators with initialization time > 0.5 s 1) |
Direction of action | w/x reversible |
Air consumption | ≤100 ln/h with a supply pressure up to 6 bar and a signal pressure of 0.6 bar |
Safety | |
Influences | |
Temperature: | ≤0.15 %/10 K |
Effect of vibration: | ≤0.25 % up to 2000 Hz and 4 g according to IEC 770 |
Supply air: | None |
Electromagnetic compatibility | Complying with EN 61000-6-2, EN 61000-6-3 and NAMUR Recommendation NE 21 |
Explosion protection | Intrinsic safety: ATEX, STCC, CSA, GOST |
Degree of protection | IP 66 |
Materials | |
Housing | Polyphthalamide (PPA) |
Cover | Polycarbonate (PC) 3) |
External parts | Stainless steel 1.4571 and 1.4301 |
Cable gland | M20 x 1.5, black polyamide (PA) |
Vent plugs | High-density polyethylene (PE-HD) |
Weight | Approx. 0.5 kg |

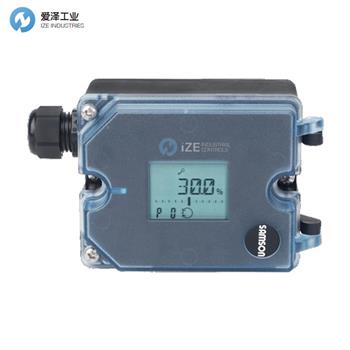

SAMSON定位器3725系列介紹
? 通過使用三個電容鍵的直觀導航菜單輕松操作
? 由于可選擇讀取方向，LCD 易于在任何安裝位置讀取
? 可變的自動啟動
? 預設參數（只有偏離標準的值需要調整）
? 將所有參數永久存儲在非易失性存儲器 (EEPROM) 中
? 可啟動緊閉功能
? 持續監控零點
? 非接觸式位置感應
? 不受環境效應和蒸汽錘擊的影響
? Easy operation with intuitive navigation menu using three capacitive keys
? LCD easy to read in any mounted position due to selectable reading direction
? Variable, automatic start-up
? Preset parameters (only values deviating from the standard need to be adjusted)
? Permanent storage of all parameters in a non-volatile memory (EEPROM)
? Tight-closing function can be activated
? Continuous monitoring of zero point
? Non-contact position sensing
? Unaffected by environmental effects and steam hammering
SAMSON定位器3725系列其他常用型號：
SAMSON 3725-112000000000
SAMSON 3725-11200000003
SAMSON 3725-130
SAMSON 3725-1120000000
SAMSON Positioner NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON定位器3725-1120000000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SAMSON定位器3725系列3725-1120000000技術參數及選型
