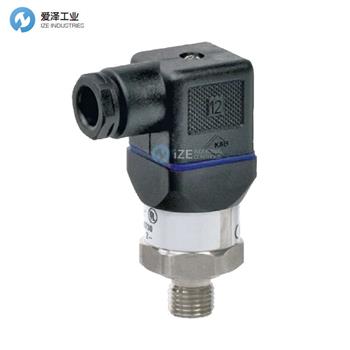

PROFIMESS壓力變送器PU-01N系列技術參數
Technical Specifications: | |
Process connection | G1/4“B male |
Wetted Parts | stainless steel 316L (from 10 bar rel. st. steel 316 and 13-8PH) |
max. Pressure | overrange limit [bar]: 2-times operating range end value |
max. Media temp. | -30. . .+100°C |
max. Ambient temp. | -30. . .+100°C |
max. Storage temp. | -40. . .+100°C |
Compensated range | 0. . .80°C |
Housing | stainless steel 316L |
Weight | approx. 0.08 kg |
Non linearity | ≤ 0.5% of span according to IEC 61298-2 |
Non repeatability | ≤ 0.2% of span |
Set time | ≤ 4 ms within 10. . .90% of span |
Temperature factor | ≤ ±1% typ., ≤ ±2.5% max. in range 0. . .+80°C |
PROFIMESS壓力變送器PU-01N系列介紹
PU-01N 系列壓力變送器屬于壓力傳感器中的優質產品，考慮到其具有吸引力的價格水平，非常適合 OEM 應用。 在 PU-01N 中，根據壓力范圍，通過壓阻式或薄膜傳感器元件測量近距離壓力。 該傳感器元件輸出的與壓力相關的電阻信號通過放大器轉換為功率或電壓信號。 或者，可以從變送器傳送 2 線型中的 4-20 mA 電源信號或 3 線型中的 0-10 VDC 電壓信號。 可根據要求提供其他類型的輸出信號。
特征
? 緊湊型設計
? 合并放大器
? 實惠的性價比
? 廣泛的介質兼容性
The PU-01N series of pressure measuring transmitters belongs to the top-class products among pressure sensors which are ideally suited for OEM applications considering their attractive price levels. In PU-01N, the close-lying pressure is measured, depending on the pressure range, by means of a piezo-resistive or a thin-film sensor element. The pressure-dependent resistance signal output by this sensor element is converted into a power or voltage signal through an amplifier. Alternatively, a power signal of 4...20 mA in 2-wire method or a voltage signal of 0...10 VDC in 3-wire method can be delivered from the transmitter. Other types of output signals are available on request.
Features
? Compact design
? Integrated amplifier
? Affordable price to performance ratio
? Broad-based media compatibility

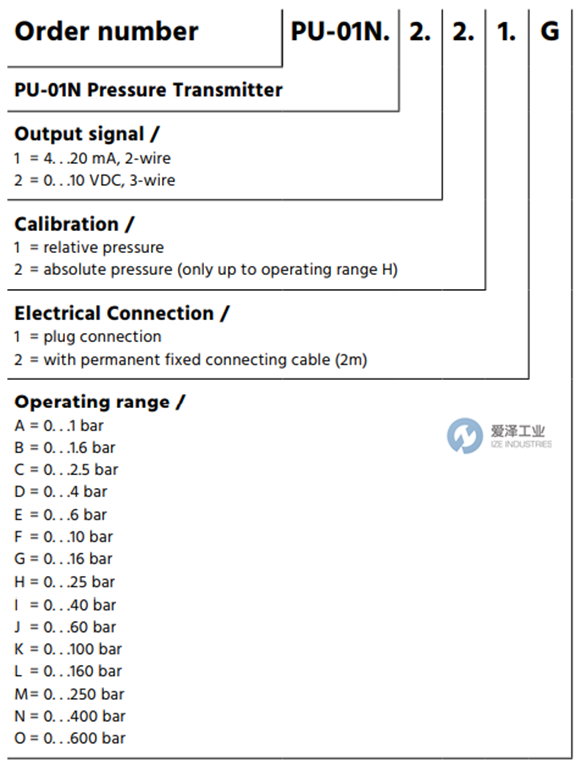

PROFIMESS壓力變送器PU-01N系列選型
PROFIMESS壓力變送器PU-01N系列其他常用型號：
PROFIMESS PU-01N.1.1.1.E
PROFIMESS PU-01N.2.1.1.D
PROFIMESS PU-01N.1.1.1.F
PROFIMESS PU-01N.1.1.1.H
PROFIMESS PU-01N.1.1.1.L
PROFIMESS Pressure Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PROFIMESS壓力變送器PU-01N.1.1.1.F的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PROFIMESS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
PROFIMESS壓力變送器PU-01N系列PU-01N.1.1.1.F技術參數及選型
