Dimensions of housing:

76 x 63 x 93 mm

Number of outputs:

2

Number, control range:

1

Output signal:

switching

Rated impulse voltage:

4000 V

Operating voltage:

none

Pressure:

yes

Pressure connection:

6,2 mm

setting range to:

600

setting range:

all data in Pa

setting range from:

40

Electrical connection:

Screw-type terminals

Colour of housing:

black

Sensor:

Pressure membrane

Function type:

Monitors

Weight:

ca. 300

Hysteresis:

approx. 22...33 Pa depending on the setting range

Internal setting:

yes

Storage temperature:

-15...+80 °C

Scope of supply:

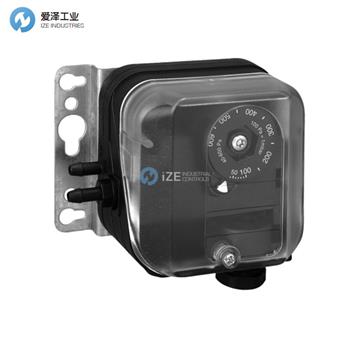

Differential pressure switch with angle bracket

Material of housing:

Plastic

max. pressure:

30000 Pa

max. sensor temperature:

80

max. switching voltage:

230 VAC, 50 Hz 24 VDC

max. switching current:

5 (1) AAC 1 (0,2) ADC

Medium:

Air, not aggressive

min. switching voltage:

12 VAC, 50 Hz 12 VDC

min. switching current:

1 mA

Installation/fastening:

Wall mounting

Surface quality:

matt

potential-free:

yes

Control range up to:

600

Control range from:

40

Control function:

switches if the pressure is undershot or overshot

Switching element:

Microswitch

Switching contact:

Toggler, gold contact

Switching power:

1150 WAC, 24 WDC

Degree of protection:

IP 54

Protection class:

II

Safety and EMC:

according to DIN EN 60730

Silicon-free:

yes

Set point adjuster:

yes

Ambient temperature up to:

80

Ambient temperature from:

-15

Degree of fouling:

II

Accessories:

connection set:JZ-06/1

permissible medium temperature:

-15...+80 °C

Permissible atmospheric humidity:

max. 95% r.h., non-condensing
