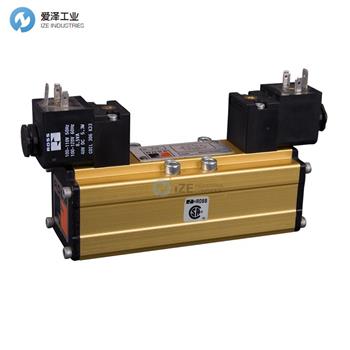

ROSS電磁閥W6077B3401技術規格
DESCRIPTION: | ISO 5599/I ISO Size 3, W60 Series, 5/3 Double Closed Center Solenoid Controlled, Spool & Sleeve, Standard Temp, Non-Locking Manual Override, 24 VDC |
ISO SIZE | 3 |
BASE PORT SIZE | 1/2 - 3/4 |
FUNCTION | 5/3 Double |
CENTER POSITION | Closed Center |
VOLTAGE | 24 VDC |
CONSTRUCTION | Spool & Sleeve |
ACTUATION | Solenoid Controlled |
AVG CV | 3.8 |
MANUAL OVERRIDE | Non-Locking |
MOUNTING | Base Mounted |
FLOW MEDIA | Filtered Air |
APPLICATION | Standard Temp |
INLET PRESSURE RANGE | VACUUM to 150 PSIG (VACUUM to 10 BAR) |
AMBIENT TEMPERATURE RANGE | 40 to 120 F (4 to 50 C) |
MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
WEIGHT | 40 lbs(1.81kg) |
ROSS電磁閥W6077B3401產品介紹
線軸和套筒
ISO尺寸1、2和3
5/2或5/3選項
單基座和閥塊基座安裝
DIN插頭連接器
Spool and sleeve
ISO Size 1, 2, and 3
5/2 or 5/3 options
Single base and manifold base mounting
DIN Plug connectors
ROSS電磁閥W60系列其他常用型號：
ROSS W6077B2401
ROSS W6077B2411
ROSS W6077B3401
ROSS W6077B3411
ROSS W6077B4401
ROSS W6077B4411
ROSS W6077B5401
ROSS W6077B5411
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS電磁閥W6077B3401的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
