HONEYWELL執行器R8001M系列技術參數
SPECIFICATIONS | |
Supply Voltage (Peak Current): | DC model: 24VDC +10/-20% |
Power: | 50 in/lb: 10 Watts maximum |
Rotation: | Max span: 90° usable |
Resolution: | Commercial: 450 positions (0.2° resolution) |
Control Deadband: | Commercial: ±0.2 degrees |
Dimensions in in (mm): | 6-11/16 x 5-29/64 x 5-29/64 |
Weight: | 3 Lbs. (1.4 Kg) |
Operating Temperature: | ﹣28 to +70 °C (﹣18 to +158 °F) for commercial models; |
Storage Temperature: | ﹣40 to +80 °C (-40°F to+176°F) |
Relative Humidity: | 0 to 99% non condensing (for commercial models) |
HONEYWELL執行器SLATE R8001M系列介紹及選型
SLATE將可配置的安全性和可編程邏輯整合到一個平臺中。SLATE程序可以輕松地針對幾乎所有應用程序進行自定義-提供幾乎無限的開發機會，而復雜性卻要低得多。
SLATE低扭矩執行器系列包括商用和工業級1/4圈執行器，有50和150 in / lb型號，具有高度可重復的位置精度，專為與SLATE系統集成而設計。該系列非常適合精確控制空氣和氣體流量，并且可以在廣泛的溫度和環境條件下運行。
SLATE brings configurable safety and programmable logic together into one single platform. The SLATE program can easily be customized for almost any application—offering virtually limitless development opportunities with far less complexity.
The SLATE Low Torque Actuator series includes commercial- and industrial-grade 1/4-turn actuators available in 50 and 150 in/lb models with highly repeatable position accuracy designed specifically to integrate with the SLATE system. This series is well suited for the precise control of air and gas flow and can operate in a wide range of temperatures and environmental conditions.

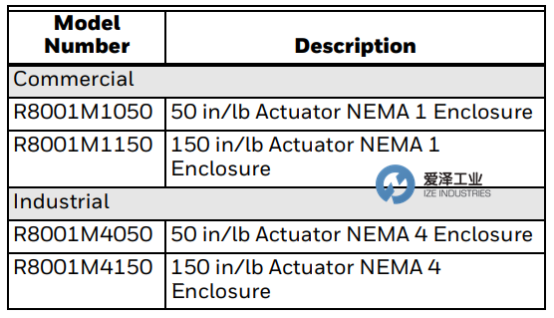

HONEYWELL執行器R8001M系列其他常用型號：
HONEYWELL R8001M1050
HONEYWELL R8001M1150
HONEYWELL R8001M4050
HONEYWELL R8001M4150
HONEYWELL Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL執行器R8001M1050的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
HONEYWELL執行器SLATE R8001M系列R8001M1050技術參數
