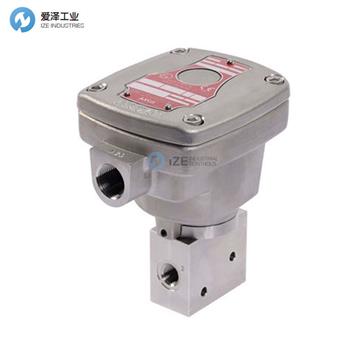

ASCO電磁閥WSNF8327B202 24VDC技術參數
Specifications | |
Body Material | Stainless Steel |
Flow (Cv) / Flow (Kv) | 0.52 / 0.45 |
Function | 3/2 Universal |
Pipe/Port Type & Size | NPTF 1/4 |
Product Type | Solenoid Valve |
Valve Actuation | Solenoid - Direct Acting |
Media | Water; Light Oil; Air, Inert Gas |
Min to Max Operating Pressure (Air) | 0 - 10 bar |
Min to Max Operating Pressure (Water) | 0 - 10 bar |
Min to Max Operating Pressure (Light Oil) | 0 - 10 bar |
Product Weight | 3.70 kg |
Coil Class | H |
Min to Max Ambient Temperature | -60 - 60/75/90 °C |
Min to Max Fluid Temperature | -20 - 90 °C |
Orifice Size | 5.7 mm |
Voltage | 24 Volts DC |
Standards & Regulations | ATEX Zone 1-21;#IEC 61508 |
Operating Environment | Hazardous |
ASCO電磁閥WSNF8327B202 24VDC產品介紹
特征
低功耗型號適用于電源可用性有限的應用
316 不銹鋼結構可用于高腐蝕性環境
防篡改無電壓釋放手動復位提供更高的安全性
也提供 NAMUR 直接安裝和手動復位結構
Features
Low-power models available for applications with limited power availability
316 stainless steel construction available for highly corrosive atmospheres
Tamper-,proof no-voltage release manual reset provides added safety
Also available in NAMUR direct-mount and manual-reset constructions
ASCO電磁閥327系列其他常用型號：
ASCO WSNF8327B202MS.24/DC
ASCO WSNF8327B202MO.24/DC
ASCO SOLENOID VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥WSNF8327B202 24VDC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
