SMC電磁閥VCH40系列技術參數
Model | VCH41 (N.C.) | VCH42 (N.O.) |
Valve construction | Pilot operated, diaphragm poppet | |
Fluid | Air, Inert gas | |
Orifice | ?16 | ?17.5 |
Max. operating pressure | 5.0 MPa | |
Operating pressure | 0.5 to 5.0 MPa | |
Fluid temperature | –5 to 80 °C | |
Ambient temperature | –5 to 80 °C | |
Body material | Brass | |
Main seal material | Polyurethane elastomer | |
Enclosure | Drip proof (Equivalent to IP65) | |
Port size | G3/4, 1 (G thread for hydraulics and pneumatics conforming to ISO1179-1 | |
Impact/Vibratio resistance | 300/100 m/s2 | |
Mounting orientation | Unrestricted | |
Weight | 1.67 kg | 1.9 kg |
Rated voltage | 12 VDC, 24 VDC | |
Allowable voltage fluctuation | ±10 % of rated voltage | |
Electrical entry | DIN connector | |
Coil insulation type | Class B | |
Power consumption | 5 W (DC) | |

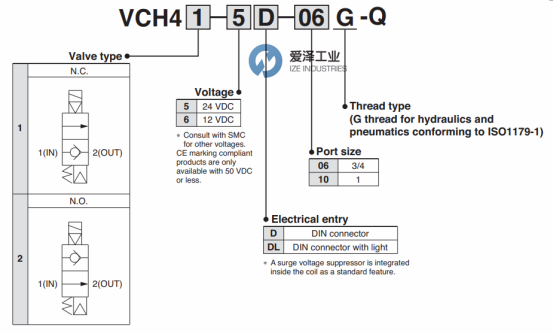

SMC電磁閥VCH40系列選型
SMC電磁閥VCH系列其他常用型號
SMC VCH41-5D-06G-Q
SMC VCHW31-02-X17
SMC VCHW31-02-X18
SIEMENS electromagnetic valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SMC電磁閥VCH41-5D-06G-Q的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SMC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
SMC電磁閥VCH40系列VCH41-5D-06G-Q選型
