MADAS電磁閥EV-1 EEx系列技術參數
TECHNICAL DATA | |
Use: | not aggressive gases of the 3 families (dry gases) |
Threaded connections Rp: | (DN 15 ÷ DN 50) according to EN 10226 |
Flanged connections PN 16: | (DN 25 ÷ DN 100) according to ISO 7005 |
Threaded connections NPT or flanged ANSI on request | |
Power supply voltage: | 24 Vdc, 24 V/50 Hz |
Power supply voltage tolerance: | -15% ... +10% |
Max. working pressure: | 0,5 bar or 1 bar |
Environment temperature (not electrical part): | -20 ÷ +60 °C |
Protection degree: | IP66 |
Class: | A |
Group: | 2 |
Closing time: | <1 s |
Opening time (fast opening): | <1 s |
Regulation opening time (slow opening): | from 0.5 to 30 s ± 20% (ta= 25 °C - V=Vn) |
MADAS電磁閥EV-1 EEx系列介紹
常閉自動燃氣切斷電磁閥。
它們在 EEx 電動執行器通電時打開，在電壓斷開時關閉。
它們可以配備流量調節器和可調緩開套件。

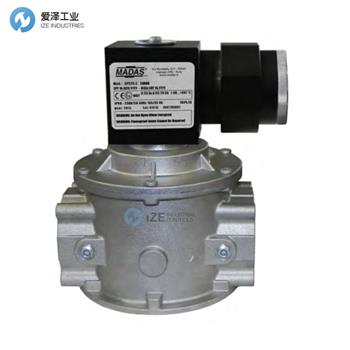

Normally closed automatic gas shut-off solenoid valves.
They open when the EEx electric actuator is electrically powered and close when voltage is disconnected.
They can be equipped with a flow regulator and adjustable slow opening kit.
MADAS電磁閥EV-1 EEx系列其他常用型號：
MADAS CPS25-E T5005
MADAS CPS25-E T4005
MADAS CPS25-E T5003
MADAS CPS25-E T4003
MADAS CPS25-E T5002
MADAS CPS25-E T4002
MADAS CPS25-E T5008
MADAS CPS25-E T4008
MADAS The electromagnetic valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MADAS電磁閥CPS25-E T5008的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for MADAS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
MADAS電磁閥EV-1 EEx系列CPS25-E T5008技術參數及介紹
