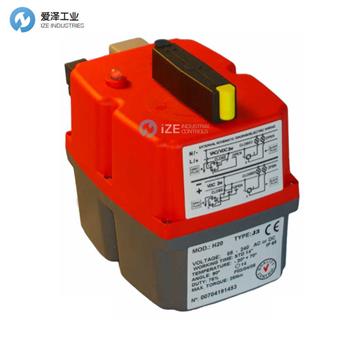

J+J電動執行器J3-H20技術參數
Specifications: | |
Voltage range - automatically sensed by actuator | 85-250V AC (1ph) or DC |
Operating time (0-90° no load) J3-H20 | 11 seconds |
Maximum break torque | 25 Nm 221 in.lbs |
Maximum operating torque (run/ reseat) | 20 Nm 177 in.lbs |
Duty rating | 0.75 |
IP Rating (IEC 60529) | IP65 |
Working angle Standard (on request) | 90° (180° or 270° options) |
Mounting ISO:5211 x DIN 3337 | F03, F04 & F05 x 14 |
Motor switches | 2 x SPDT micro switches |
End of travel confirmation (volt free) | 2 x SPDT micro switches |
Heater | 4 W |
Ambient temperature range | -20° to +70°C / -4 to +158°F |
Electrical connecting plugs | DIN 43650/ ISO4400 & C192 |
Consumption | |
220V/1ph At maximum torque | 0.09 A |
220V DC At maximum torque | 0.11A |
110V/ 1ph At maximum torque | 0.17A |
110V DC At maximum torque | 0.21A |
Weight | 1.8 kg |
Materials of construction: | |
Housing | Anti-corrosive Polyamide |
Fasteners | Stainless steel |
Gears | Polyamide (speed reducing) & steel |
Shaft | Stainless steel |
Output drive | Zammac |
Position indicator | Glass filled Polyamide |
J+J電動執行器J3-H20產品介紹
具有自動電壓感應的多電壓。 110 ~ 240V 交流或直流。
LED 狀態燈指示執行器的運行狀態
防止閥門堵塞的電子過扭矩保護
恒溫防冷凝加熱器
緊急手動操作的手動操作
2 個無電壓行程結束確認開關
IP65 防風雨防腐和防紫外線聚酰胺外殼
本地視覺位置指示器
ISO5211 多法蘭安裝，雙方驅動
通過提供的 DIN 插頭進行所有外部電氣連接
CE 標志
IS0 9000 制造商
提供故障保護和數字定位器即插即用套件。
Multi-voltage with auto-voltage sensing. 110 ~ 240V AC or DC .
LED Status light to indicate operational status of actuator
Electronic over-torque protection against valve jams
Thermostatic anti-condensation heater
Manual override for emergency hand operation
2 Volt free end of travel confirmation switches
IP65 weatherproof anticorrosive and UV protected Polyamide housing
Local visual position indicator
ISO5211 multi-flange mounting with double square drive
All external electrical connections via supplied DIN plugs
CE marked
IS0 9000 manufacturer
Failsafe and digital positioner plug & play kits available.

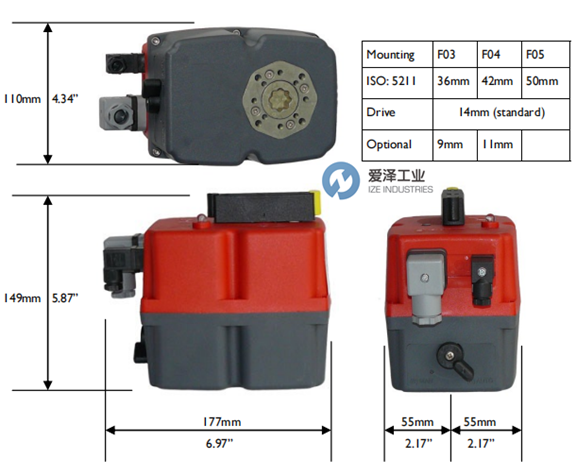

J+J電動執行器J3-H20技術尺寸
J+J電動執行器J3系列其他常用型號：
J+J J3-L20
J+J J3-L35
J+J J3-L55
J+J J3-L85
J+J J3-L140
J+J J3-L300
J+J J4-S20
J+J J3C-L20
J+J J4C-S20
