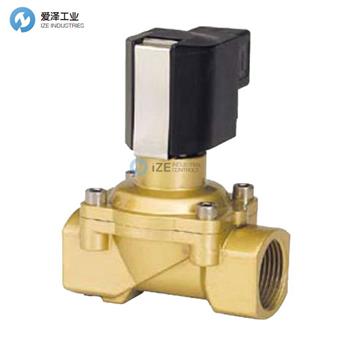

NORGREN電磁閥8254301.9151.02400技術參數
Technical Details | |
ATTRIBUTE | |
Medium: | Neutral gases and liquids |
Port size: | G3/4 |
Orifice: | 20 |
Operation: | 44594 |
Function: | NO |
Voltage: | 24Vdc |
Operating pressure: | 0 ... 10 bar |
Operating temperature: | -10 ... 50 °C |
Operating temperature (fluid): | -10 ... 90 °C |
Electrical connection: | DIN EN 175301-803 |
Protection class: | EN 60529 IP65 |
Kv value: | 5.8 m3/h |
Material - Body: | Brass |
Material - Seat seal: | NBR |
NORGREN電磁閥8254301.9151.02400產品介紹
閥門工作時無壓差
高流量
適用于真空
適用于壓力較低或波動的系統
電磁閥可更換，無需使用工具即可更換
Valve operates without differential pressure
High flow rate
Suitable for vacuum
For systems with low or fluctuating pressure
Solenoid interchangeable without tools
NORGREN電磁閥其他常用型號：
NORGREN 8254301.9151.02400
NORGREN 8254300.9150.00000
NORGREN 8254300.9304.23049
NORGREN 8254351.9151.02400
NORGREN 8254350.9151.02400
NORGREN 8254350.8304.11549
NORGREN 8254335.9301.02400
NORGREN 8254335.9176.02400
NORGREN 8254335.9159.02400
NORGREN Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NORGREN電磁閥8254301.9151.02400的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NORGREN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
