SAMSON轉換器6111-0020121711000000技術參數

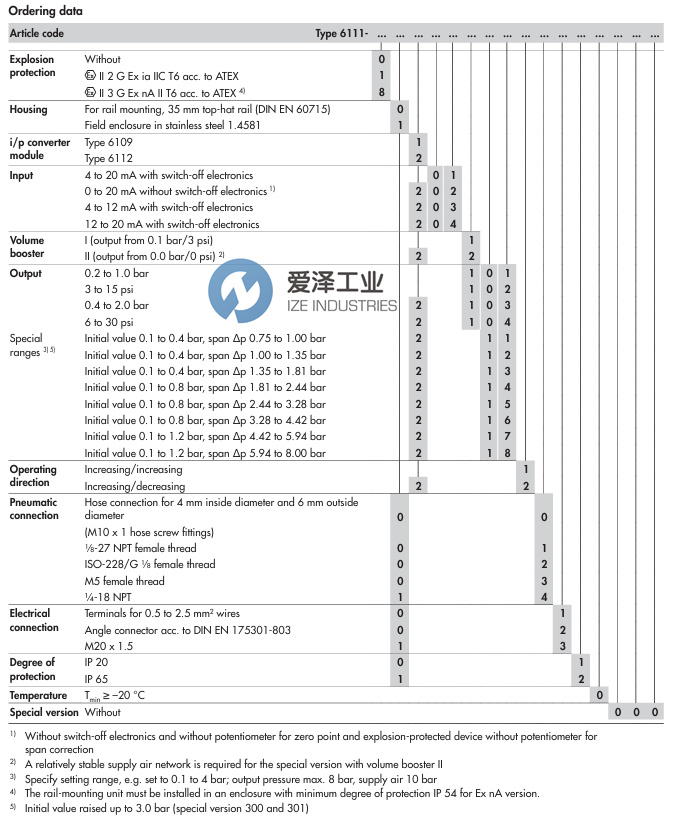

Article code | Type 6111 |
Explosion | 0 = Without |
Housing | 0 = For rail mounting, 35 mm top-hat rail (DIN EN 60715) |
i/p converter module | 2 = Type 6112 |
Input | 01 = 4 to 20 mA with switch-off electronics |
Volume booster | 2 = II (output from 0.0 bar/0 psi) |
Output | 17 = Initial value 0.1 to 1.2 bar, span ?p 4.42 to 5.94 bar |
Operating direction | 1 = Increasing/increasing |
Pneumatic connection | 1 = 1/8-27 NPT female thread |
Temperature | 0 = Tmin ≥ –20 °C |
Special version | 000 = Without |

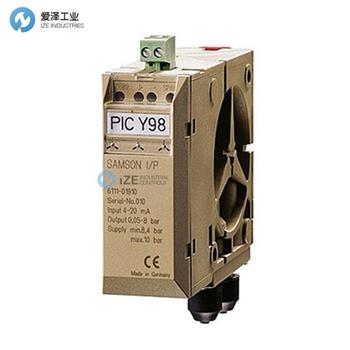

SAMSON轉換器6111系列介紹
用于將直流輸入信號轉換為氣動輸出信號，用于測量和控制任務，特別適合用作電氣測量裝置和氣動控制器之間或電氣控制裝置和氣動控制閥之間的中間元件。
這些轉換器專為各種工業應用而設計，尤其適用于過程工程領域。
轉換器可接受與負載無關的 4 至 20 mA 或 0 至20 mA 直流輸入信號，并將其轉換為氣動輸出信號。
通過安裝各種轉換器模塊，6111 型 i/p 轉換器可提供寬輸出壓力范圍。最大輸出壓力可達 8 bar。
Used to convert a direct-current input signal into a pneumatic output signal for measuring and control tasks · Particularly suitable as intermediate element between electric measuring devices and pneumatic controllers or between electric control devices and pneumatic control valves
These converters are designed for use in all kinds of industrial applications, especially in the field of process engineering.
The converters accept a load-independent 4 to 20 mA or 0 to 20 mA direct current input signal which they convert into a pneumatic output signal.
Wide output pressure ranges can be selected for the Type 6111 i/p Converter by installing various converter modules. The maximum output pressure that can be achieved is 8 bar.
SAMSON轉換器6111系列選型
SAMSON轉換器6111系列其他常用型號：
SAMSON 6111-0020121711000000
SAMSON 6111-0010110110110000.00
SAMSON 6111-00201111110000.00
SAMSON 6111-0020110311110000.00
SAMSON 6111-0020121810110000.00
SAMSON 6111-0020111712210000.00
SAMSON 6111-0020121711110000.00
SAMSON 6111-0020121511110000.00
SAMSON 6111-0010110112210000
SAMSON converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON轉換器6111-0020121711000000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
