VICKERS閥DGMX2-3-PP-BW-B-40技術參數
Product specifications | |
Actuation type | Pressure operated |
Adjustment location | Adjuster - B port end of valve |
Adjustment type | Screw and locknut |
Brand | Vickers by Danfoss |
Design series | 40 Series |
Flow rate upto LPM | x |
Flow rate upto LPM | 60 |
Flow rate upto USGPM | x |
Flow rate upto USGPM | 16 |
Fluid cleanliness | 19/17/14 micron |
Fluid compatibility | Petroleum oils |
Function ports | Reducing line P, pilot line P |
Gauge port thread type | G1/8" (1/8" BSPF) |
Interface | ISO4401-03 |
Maximum pressure upto bar | x |
Maximum pressure upto bar | 315 |
Maximum pressure upto psi | x |
Maximum pressure upto psi | 4500 |
Model code | DGMX23PPBWB40 |
Performance | Standard |
Pressure adjustment range | 3.5-70 bar (51-1000 psi) |
Rebatable | Yes |
Seal type | Viton |
Special features | None |
Valve mount type | Subplate/manifold mounted |
Valve type | Reducing-relieving overlapped |
Working temp max C | 80 |
Working temp max F | 176 |
Working temp min C | -20 |
Working temp min F | -4 |

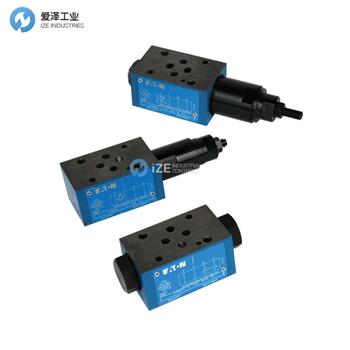

VICKERS閥DGMX2系列介紹
這些兩級滑閥保持降低的出口壓力，以應對入口壓力的變化。 這些閥門能夠充當安全閥（最大流量的 50%），以防止在執行器受到反作用負載時產生過壓。
閥門壓力設置可通過包含內六角的調節螺釘、手動調節旋鈕或帶鑰匙鎖的千分尺旋鈕進行調節。 不同的彈簧額定值涵蓋從 2 到 315 bar (30-4500 psi) 的總壓力范圍。
These two-stage spool valves maintain a reduced outlet pressure against variations in inlet pressure. These valves are able to act as relief valves (at 50% of maximum flow) to prevent excess pressure being developed when an actuator is subject to a reactive load.
The valve pressure setting is adjustable by means of either an adjusting screw containing an internal hex, a hand-adjust knob, or a micrometer knob with keylock. Different spring ratings cover an overall pressure range from 2 to 315 bar (30-4500 psi).
VICKERS閥其DGMX2系列他常用型號：
VICKERS DGMX2-3-PP-BW-B-40
VICKERS DGMX2-3-PA-BH-S-40
VICKERS DGMX2-3-PA-RW-B-40
VICKERS DGMX2-3-PP-FW-S-40
VICKERS DGMX2-3-PP-BW-S-40
VICKERS DGMX2-5-PB-FW-B-30
VICKERS Pressure Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
